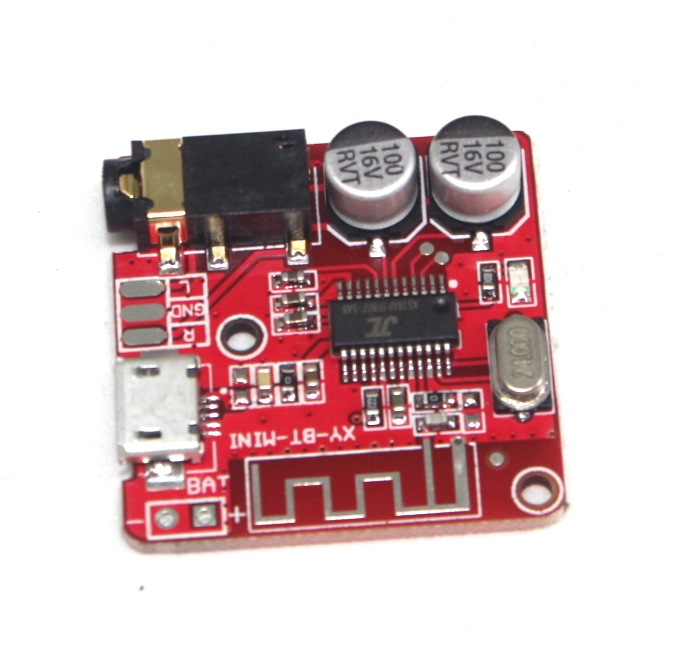

XY-BT Mini Bluetooth 4.1 lossless mp3 decoder and amplifier
This content will be shared across all product pages.
The XY-BT Mini Bluetooth 4.1 Lossless MP3 Decoder and Amplifier is a compact, high-performance module designed to play high-quality audio via Bluetooth. This module integrates a Bluetooth receiver, MP3 decoder, and a power amplifier, providing a complete audio solution in a small form factor. It is ideal for various audio applications, such as portable speakers, DIY audio projects, and home audio systems. The Bluetooth 4.1 technology ensures stable and efficient wireless audio streaming, while the lossless MP3 decoding provides high-fidelity sound reproduction.
Key Features:
- Bluetooth 4.1 technology for wireless audio streaming
- Integrated MP3 decoder and power amplifier
- Lossless audio playback for high-fidelity sound
- Compact and easy-to-integrate design
- On-board volume and playback controls
- Supports multiple audio formats
- Low power consumption
- Overheat and short-circuit protection
- Bluetooth Version: 4.1
- Audio Output Power: 3W per channel
- Operating Voltage: 5V DC
- Supported Audio Formats: MP3, WAV, WMA, FLAC, APE
- Signal-to-Noise Ratio (SNR): ≥ 90dB
- Total Harmonic Distortion (THD): ≤ 0.1%
- Frequency Response: 20Hz to 20kHz
- Portable Bluetooth speakers
- DIY audio projects
- Home audio systems
- Wireless sound systems
- Personal audio systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
