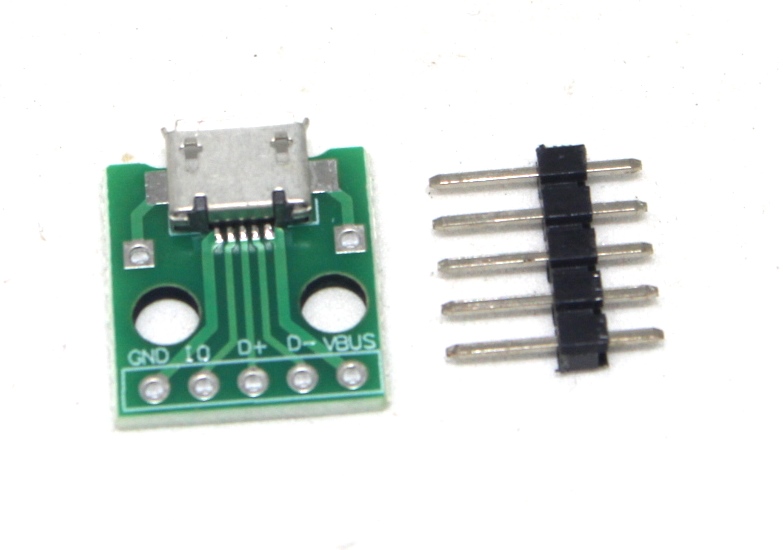

micro usb module
This content will be shared across all product pages.
The Micro USB Module is a compact and versatile module designed to facilitate easy integration of USB connectivity into electronic projects. It provides a convenient way to add a Micro USB interface to devices, enabling power supply and data transfer capabilities. This module is ideal for applications such as charging, data communication, and as a power supply interface for various DIY electronics and embedded systems.
Key Features:
- Micro USB interface for easy connectivity
- Compact and easy to integrate
- Provides 5V power supply output
- Supports data transfer
- On-board voltage regulation
- Reverse polarity protection
- Mounting holes for secure installation
- Input Voltage: 5V (via Micro USB)
- Output Voltage: 5V
- Output Current: Up to 1A (depends on power source)
- Power supply interface for DIY electronics
- Charging interface for battery-powered devices
- Data communication for microcontrollers and development boards
- Embedded systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
