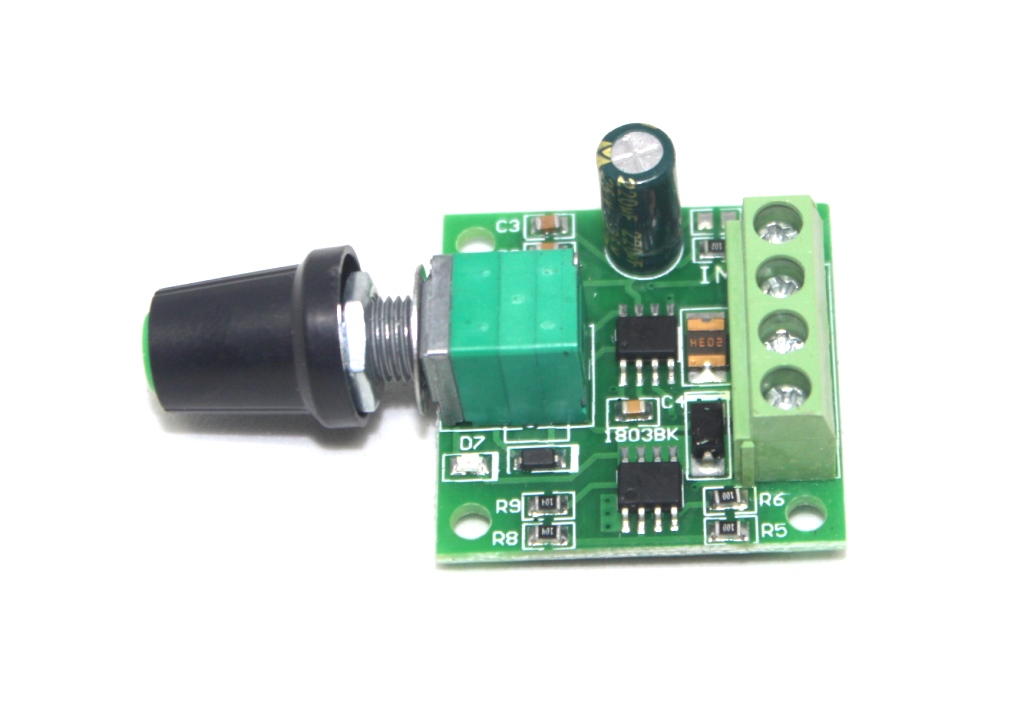

1803BK PWM DC motor governor
This content will be shared across all product pages.
The 1803BK PWM DC Motor Governor is a versatile and efficient motor speed controller designed to regulate the speed of DC motors using Pulse Width Modulation (PWM) technology. This device is ideal for applications requiring precise speed control, such as electric fans, conveyor belts, and various DIY electronics projects. The 1803BK features an easy-to-use interface with a potentiometer for adjusting the motor speed and a robust design for reliable operation.
Key Features:
- PWM technology for efficient speed control
- Wide voltage input range: 1.8V to 15V DC
- Adjustable speed via potentiometer
- High power output: up to 2A continuous current
- Compact and easy to install
- Protection features: reverse polarity protection
- LED indicator for power status
- Operating Voltage: 1.8V to 15V DC
- Output Current: Up to 2A (continuous)
- Control Method: Potentiometer (knob)
- Frequency: 20kHz (PWM)
- DC motor speed control
- Electric fans
- Conveyor belts
- DIY electronics projects
- Robotics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
