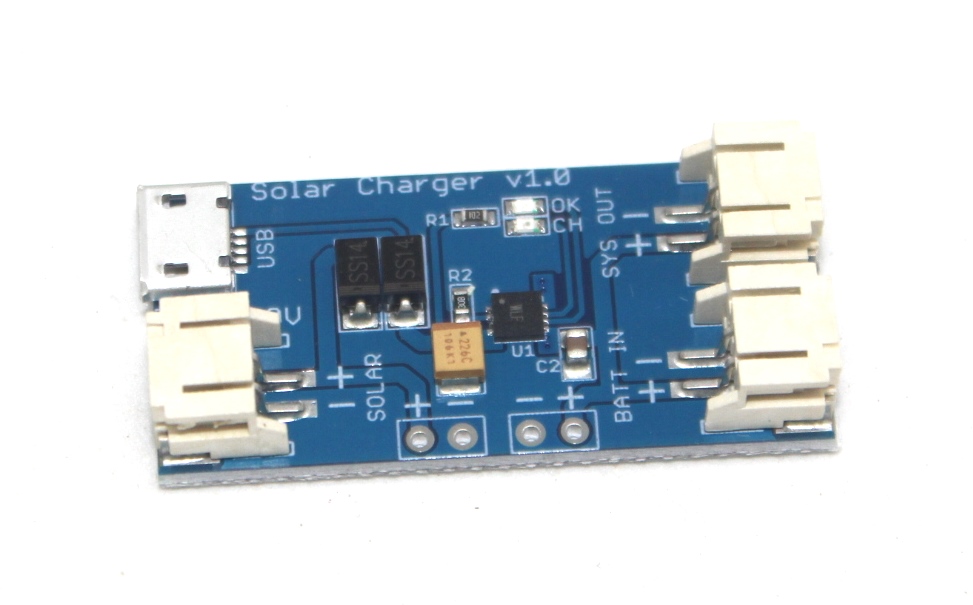

CN3065 500mA Lithium battery mini solar charging module
This content will be shared across all product pages.
The CN3065 500mA Lithium Battery Mini Solar Charging Module is a compact and efficient solution for charging lithium-ion batteries using solar power. Designed specifically for solar energy applications, this module integrates the CN3065 chip to provide optimal charging performance, ensuring the safe and efficient charging of a single-cell lithium battery. It features automatic charge management, making it ideal for use in portable solar-powered devices and DIY solar projects.
Key Features:
- Integrated CN3065 charging controller chip
- Supports single-cell lithium-ion batteries
- Maximum charging current: 500mA
- Optimized for solar charging applications
- Automatic charge management
- Overcharge protection
- LED indicators for charging status
- Compact and lightweight design
- Easy to integrate into various projects
- Input Voltage: 4.4V to 6V (ideal for solar panels)
- Charging Current: Up to 500mA
- Battery Type: Single-cell lithium-ion battery
- Charging Method: Constant current/constant voltage (CC/CV)
- Protection Features: Overcharge protection
- Portable solar-powered devices
- DIY solar charging projects
- Remote sensors
- Wearable electronics
- Backup power solutions
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
