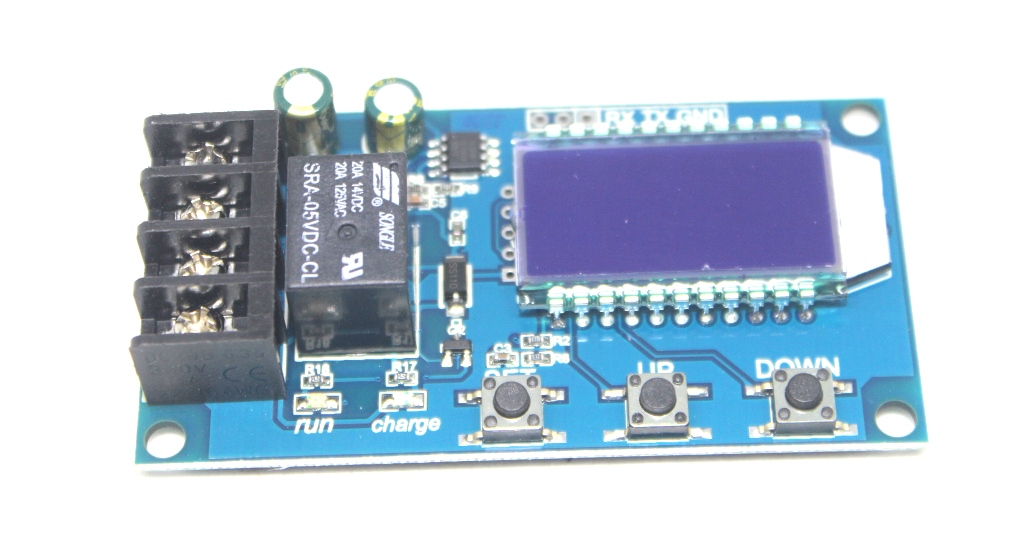

XY-L10A Battery charging control board
This content will be shared across all product pages.
The XY-L10A Battery Charging Control Board is designed to manage the charging process of various types of batteries, ensuring safe and efficient charging. It is equipped with multiple features to protect against overcharging, over-discharging, and short circuits, making it ideal for maintaining battery health and longevity. The board is suitable for use with lithium, lead-acid, and other rechargeable batteries.
Key Features:
- Intelligent charging control for various battery types
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Automatic charging cut-off when the battery is fully charged
- LED indicators for charging status
- Adjustable charge voltage and current
- Compact and easy to integrate into battery management systems
- Input Voltage: DC 5V-30V
- Output Voltage: 1.5V-30V
- Maximum Output Current: 10A
- Charging Method: Constant current/constant voltage (CC/CV)
- Battery Types: Compatible with lithium, lead-acid, and other rechargeable batteries
- Protection Features: Overcharge, over-discharge, and short circuit protection
- Dimensions: 79 * 42mm
- Weight: N/A
- Battery charging stations
- Portable electronics
- Power tools
- Renewable energy systems
- Automotive battery management
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
