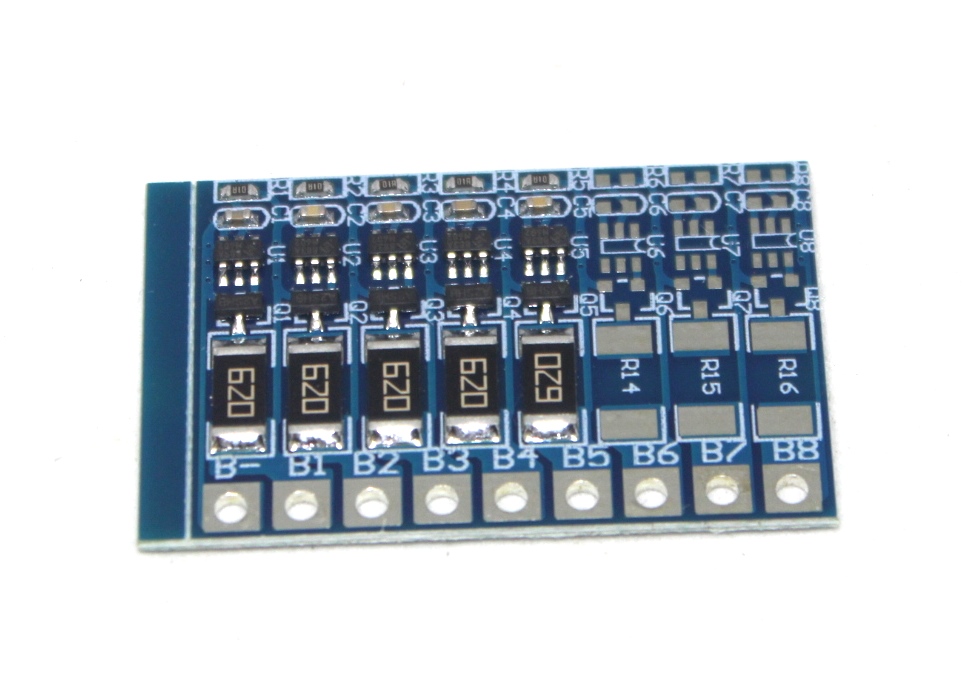

5s LIPO battery equalizer board
This content will be shared across all product pages.
A 5s LIPO Battery Equalizer Board is designed to balance the voltage of each cell in a 5-cell series-connected lithium polymer (LIPO) battery pack. This equalizer board ensures that each cell maintains the same voltage level, thereby maximizing the performance and lifespan of the battery pack. By monitoring and equalizing the charge across cells, it prevents overcharging or undercharging, which can lead to damage or reduced capacity.
Key Features:
- Balances voltage across 5-series LIPO battery cells
- Monitors individual cell voltages
- Automatically equalizes cell voltages during charging and discharging
- Protects against overcharging and undercharging
- Enhances battery performance and longevity
- Compact and easy to integrate into battery packs
- Passive or active balancing options available
- Number of Cells: 5s (5-series)
- Operating Voltage: Compatible with typical LIPO battery voltages (e.g., 18.5V for 5s)
- Equalization Method: Passive or active balancing circuitry
- Protection Features: Overcharge protection, over-discharge protection
- RC vehicles (drones, planes, cars)
- Portable electronics
- Energy storage systems
- Solar power storage
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
