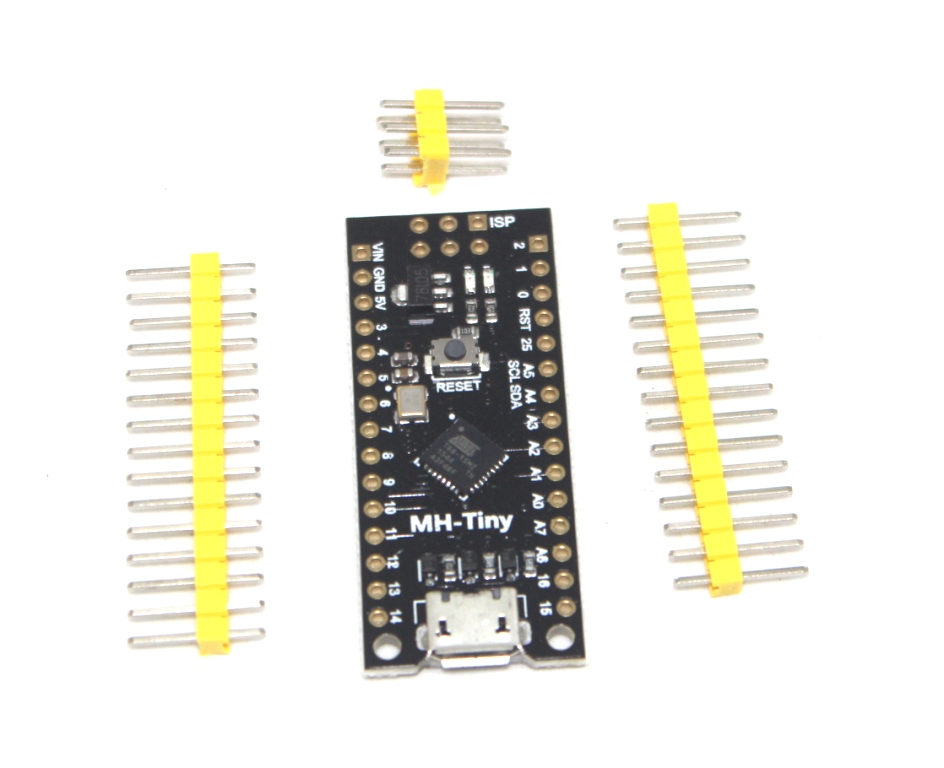

ATTINY88 development board
This content will be shared across all product pages.
The ATtiny88 Development Board is a compact and versatile microcontroller development platform based on the Atmel ATtiny88 microcontroller. It is designed for hobbyists, students, and developers looking to create embedded systems and projects with a small form factor. The board provides easy access to the ATtiny88's features, including multiple I/O pins, PWM, ADC, and communication interfaces. It is compatible with Arduino IDE, making it easy to program and integrate into various applications.
Key Features:
- Based on the Atmel ATtiny88 microcontroller
- 8-bit AVR RISC architecture
- Compatible with Arduino IDE
- Multiple digital I/O pins
- PWM (Pulse Width Modulation) outputs
- ADC (Analog-to-Digital Converter) inputs
- SPI, I2C, and UART communication interfaces
- Compact and breadboard-friendly design
- Low power consumption
- Microcontroller: Atmel ATtiny88
- Operating Voltage: 2.7V to 5.5V
- Digital I/O Pins: 28 (24 programmable)
- PWM Channels: 6
- ADC Channels: 8 (10-bit resolution)
- Flash Memory: 8KB
- SRAM: 512B
- EEPROM: 512B
- Clock Speed: Up to 20MHz
- Communication Interfaces: SPI, I2C, UART
- DIY electronics projects
- Embedded systems
- Robotics
- IoT (Internet of Things) devices
- Sensor interfacing
- Prototyping and development
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
