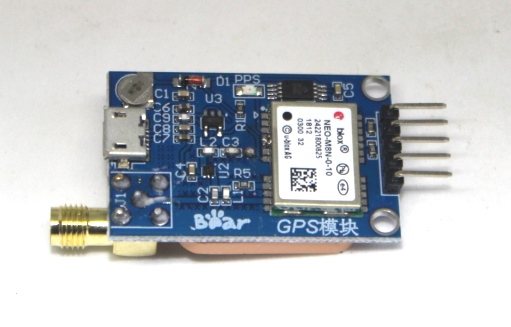

NEO8m GPS module

https://www.hub360.cc/web/image/product.template/14620/image_1920?unique=bd1def9
(0 review)
12 sold in last 24 hours

₦ 16,837.21 16837.21 NGN ₦ 16,837.21 Tax Excluded

₦ 18,100.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
9 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
The NEO-8M is a compact and highly accurate GPS module designed for navigation and positioning applications. It utilizes the u-blox M8 GNSS (Global Navigation Satellite System) engine, which supports multiple satellite systems including GPS, GLONASS, Galileo, and BeiDou. The module provides reliable positioning data with fast time-to-first-fix (TTFF) and high sensitivity, making it suitable for both outdoor and urban environments. It features a UART interface for communication and is easy to integrate into various projects requiring precise location information. Key Features:
  • u-blox M8 GNSS chipset
  • Supports GPS, GLONASS, Galileo, and BeiDou satellite systems
  • High sensitivity for reliable signal acquisition
  • Fast TTFF (Time To First Fix)
  • UART interface for communication
  • Built-in low-noise amplifier (LNA) for improved performance
  • Supports SBAS (Satellite-Based Augmentation System) for enhanced accuracy
  • Small form factor for easy integration
Technical Specifications:
  • Chipset: u-blox M8
  • Satellite Systems: GPS, GLONASS, Galileo, BeiDou
  • Sensitivity: -167 dBm
  • Operating Voltage: 2.7V to 3.6V
  • Current Consumption: < 30 mA
  • Antenna Interface: SMA (optional)
  • Update Rate: Up to 10 Hz
  • Position Accuracy: < 2.5 meters (CEP 50%)
Applications:
  • Vehicle tracking and navigation systems
  • UAVs (Unmanned Aerial Vehicles) and drones
  • Marine navigation
  • Asset tracking
  • Geotagging for photography
  • IoT (Internet of Things) devices requiring location-awareness
Datasheet: For detailed technical information, please refer to the datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
