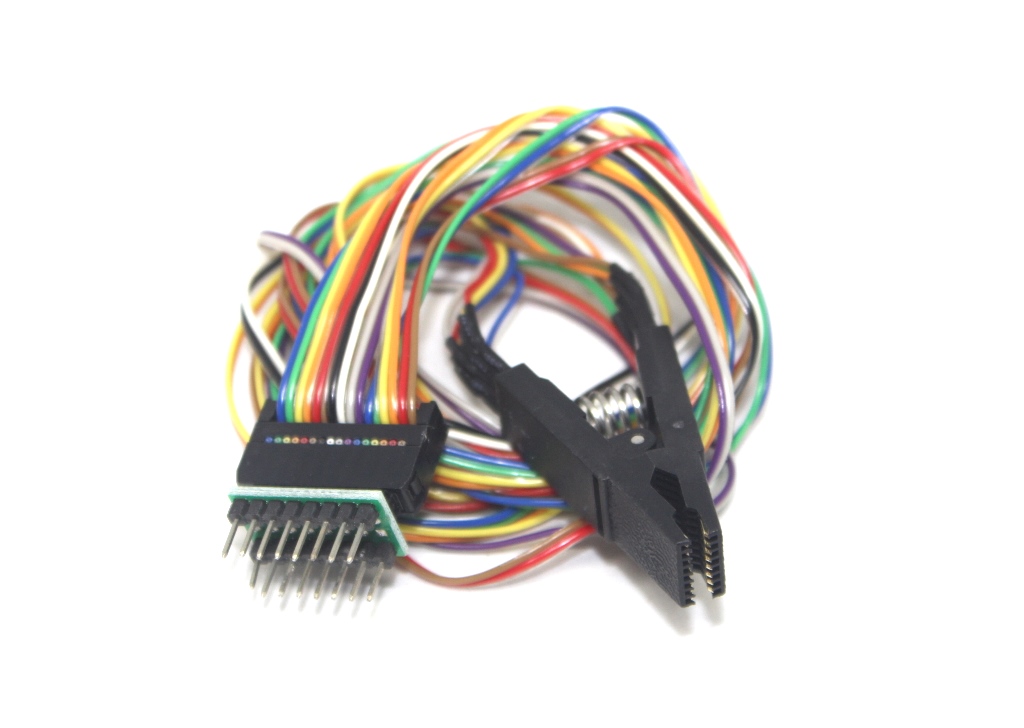

SOP16 Clip with board
This content will be shared across all product pages.
The SOP16 Clip is a specialized tool used for programming and testing Integrated Circuits (ICs) with SOP16 packages. It provides a secure and reliable connection between the SOP16 IC and a programmer or testing device. This clip is designed to simplify the process of IC programming and debugging, offering convenience and efficiency in handling SOP16 ICs without soldering.
Key Features:
- Designed for SOP16 package ICs
- Secure clip-on mechanism for stable connection
- No soldering required
- Durable construction for repeated use
- Suitable for programming and testing applications
- Compatible with various IC programmers and testing equipment
- Package Type: SOP16
- Pin Count: 16 pins
- Compatibility: Compatible with SOP16 ICs from various manufacturers
- IC programming
- IC testing and debugging
- Prototype development
- Educational projects
- Repair and maintenance of electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
