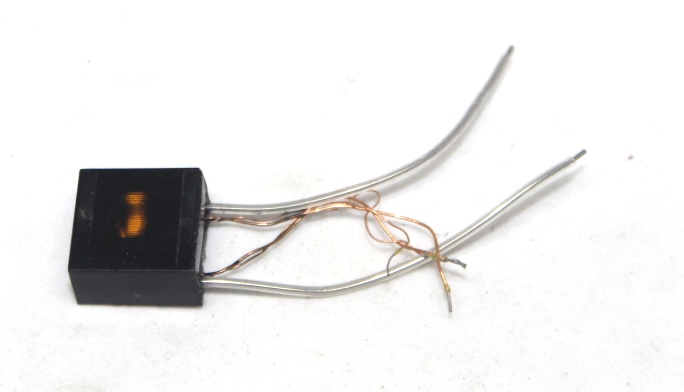

15KV arc ignition booster coil transformer
This content will be shared across all product pages.
The 15KV Arc Ignition Booster Coil Transformer is a high-voltage transformer designed to generate high-voltage arcs for ignition purposes. This coil transformer is capable of boosting low input voltages to high output voltages, up to 15,000 volts (15KV). It is commonly used in applications requiring high-voltage arcs, such as gas burners, stoves, lighters, and other ignition systems. The compact and robust design ensures reliable performance in various environments.
Key Features:
- High output voltage up to 15KV
- Designed for arc ignition applications
- Compact and robust construction
- Efficient voltage boosting
- Easy integration into ignition systems
- Reliable performance
- Input Voltage: 3.7V to 6V DC
- Output Voltage: 15,000V (15KV)
- Input Current: 0.5A to 1.5A (depending on input voltage)
- Output Type: Continuous high-voltage arc
- Protection: Requires proper insulation and handling due to high voltage
- Gas burners
- Stoves
- Lighters
- High-voltage experiments
- Ignition systems
- Educational demonstrations
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
