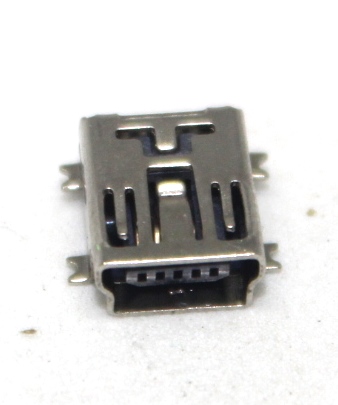

5pin Mini SMD USB
This content will be shared across all product pages.
The 5-pin Mini SMD USB connector is a compact and surface-mount device designed for reliable USB connectivity in small electronic devices. It is commonly used in portable electronics, embedded systems, and custom circuit boards where space is limited. This connector provides a robust and secure connection for USB data and power transmission, making it ideal for a wide range of applications.
Key Features:
- Miniature size for compact electronic designs
- Surface-mount device (SMD) for easy PCB integration
- 5-pin configuration for standard USB connections
- Durable construction for reliable performance
- Compatible with USB 2.0 and USB 1.1 standards
- Suitable for high-speed data transfer and power supply
- Receptacle type for easy device connectivity
- Pin Count: 5
- Mounting Type: Surface Mount Device (SMD)
- Connector Type: Mini USB
- Compatibility: USB 2.0, USB 1.1
- Current Rating: Up to 1.8A
- Voltage Rating: 30V DC
- Operating Temperature Range: -40°C to +85°C
- Material: High-quality metal and plastic
- Contact Plating: Gold-plated contacts for better conductivity
- Housing: UL94V-0 rated for flame retardancy
- Portable electronic devices
- Embedded systems
- Custom circuit boards
- Mobile phones and tablets
- Digital cameras
- Wearable technology
- USB-powered devices
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
