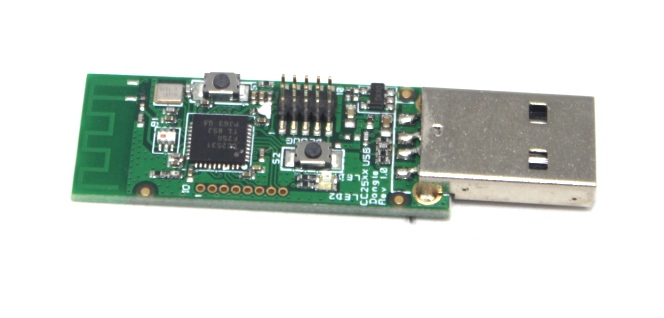

CC2531 sniffer USB dongle
This content will be shared across all product pages.
The CC2531 Sniffer USB Dongle is a compact and affordable device used for sniffing Zigbee wireless networks. It is based on the Texas Instruments CC2531 system-on-chip (SoC), which integrates a Zigbee radio transceiver with an 8051 microcontroller core. This dongle allows developers and enthusiasts to monitor Zigbee network traffic, making it valuable for debugging, network analysis, and protocol research in home automation, IoT, and industrial applications.
Key Features:
- Texas Instruments CC2531 Zigbee SoC
- USB interface for easy connectivity to PCs and embedded systems
- Sniffs Zigbee network traffic for analysis and debugging purposes
- Supports Zigbee protocol stack and IEEE 802.15.4 standards
- Compact and portable design
- Compatible with various Zigbee network analyzers and software tools
- Low power consumption
- Provides real-time monitoring and logging of Zigbee frames
- Chipset: Texas Instruments CC2531
- Protocol: Zigbee (IEEE 802.15.4)
- Interface: USB 2.0
- Operating Frequency: 2.4GHz
- Power Supply: USB bus powered (typically 5V)
- Operating Systems: Windows, Linux, macOS
- Dimensions: Compact size for easy portability
- Zigbee network development and debugging
- IoT device testing and validation
- Home automation and smart lighting projects
- Industrial control and monitoring systems
- Wireless sensor networks
- Protocol analysis and research
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
