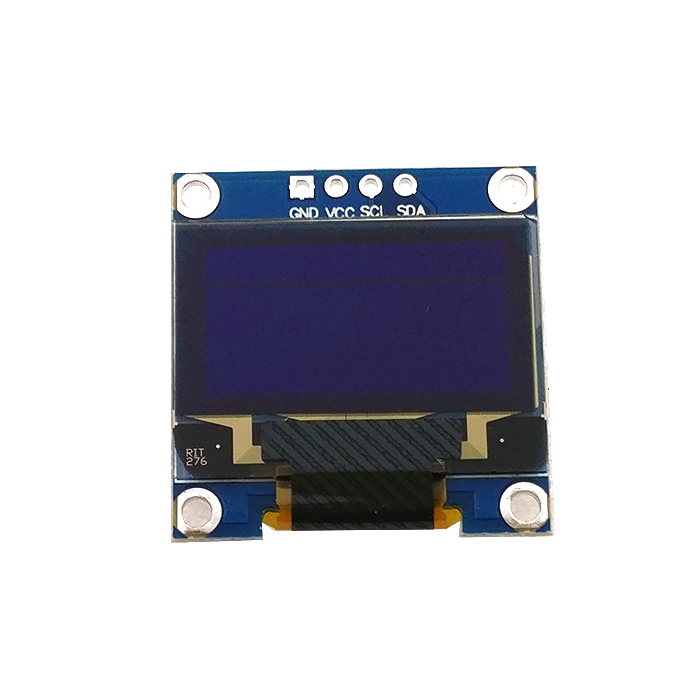

0.96 inch OLED screen
This content will be shared across all product pages.
The 0.96 inch OLED screen is a compact, high-resolution display module widely used in various electronics projects. Its organic light-emitting diode (OLED) technology provides bright, clear, and high-contrast images while consuming low power. This makes it ideal for wearable devices, IoT projects, and other compact applications requiring a vibrant and efficient display.
Key Features:
- High-contrast OLED display
- Compact 0.96 inch size
- Resolution: 128 x 64 pixels
- Low power consumption
- Wide viewing angle
- Fast response time
- I2C or SPI communication interface
- Long operational life
- Lightweight and thin design
- Display Size: 0.96 inch
- Resolution: 128 x 64 pixels
- Display Type: OLED (organic light-emitting diode)
- Color: Monochrome (usually white, blue, or yellow)
- Interface: I2C or SPI
- Operating Voltage: 3.3V to 5V
- Current Consumption: Typically 20mA to 30mA
- Viewing Angle: >160°
- Operating Temperature: -40°C to 85°C
- Dimensions: Approximately 27mm x 27mm x 4mm (varies by manufacturer)
- Weight: Approximately 5g
- Wearable devices
- IoT projects
- Home automation displays
- Handheld devices
- Portable electronics
- Data loggers
- Sensors and monitoring systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
