KF8500-2P 300V/10A 2 Way PCB screw terminal block
This content will be shared across all product pages.

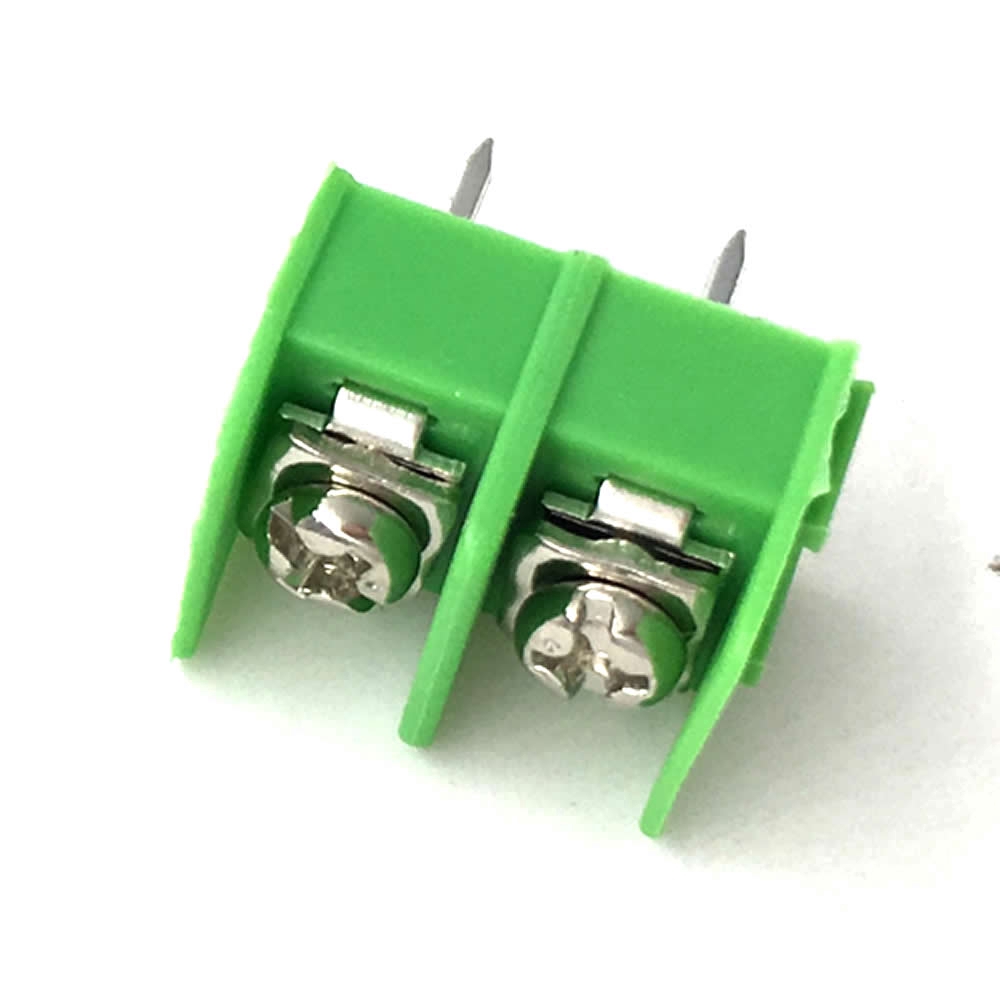

The KF8500-2P is a PCB-mount screw terminal block designed for secure and reliable electrical connections in various electronic and electrical applications. It features a compact design suitable for PCB integration and offers ease of wiring through screw terminals.
Key Features:
- Terminal Type: Screw terminal block
- Number of Ways: 2
- Maximum Voltage: 300V
- Maximum Current: 10A
- PCB Mounting Type: Through-hole
- Pitch: Standard pitch suitable for PCB layout
- Maximum Voltage Rating: 300V
- Maximum Current Rating: 10A
- Contact Material: Brass
- Contact Plating: Tin-plated or nickel-plated
- Housing Material: Thermoplastic
- Operating Temperature Range: Typically -40°C to +105°C
- Mounting Style: Through-hole PCB mount
- PCB connections
- Power supply units
- Control panels
- Industrial electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
