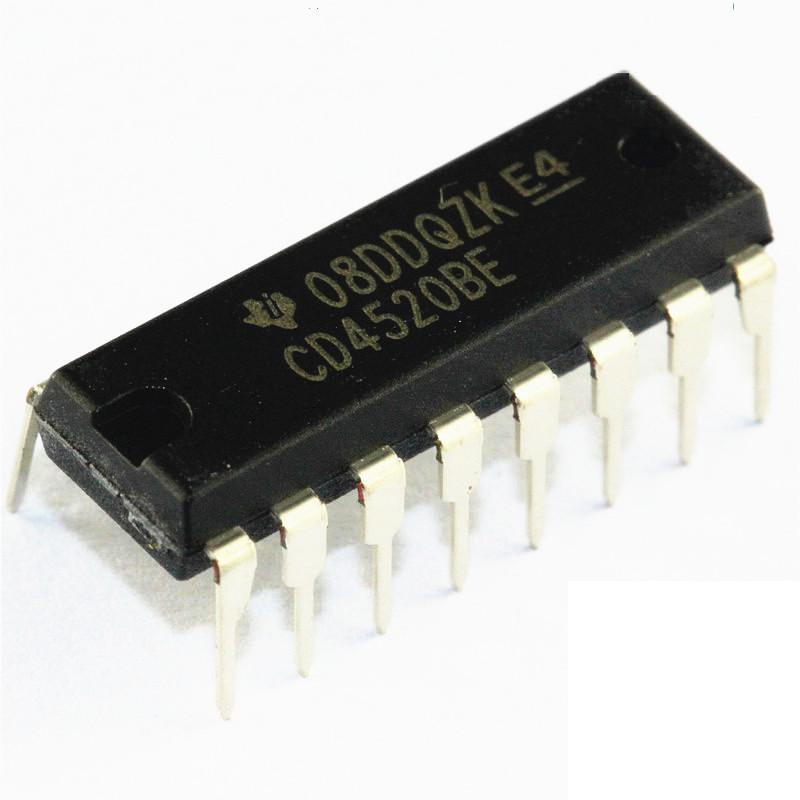

CD4520 binary counter
This content will be shared across all product pages.
Description: The CD4520 is a dual binary counter IC designed for digital counting and timing applications. It consists of two independent 4-bit binary counters, each with a clock input (CP0, CP1), a clear input (CLR), and complementary outputs (Q and Q). The CD4520 operates with TTL and CMOS logic levels, making it versatile for use in various digital circuits where counting and timing functions are required.
Key Features:
- Dual 4-bit binary counters in a single package
- Separate clock and clear inputs for each counter
- Wide operating voltage range: 3V to 15V
- Low power consumption
- Direct interface with TTL and CMOS logic
- Schmitt trigger clock inputs for noisy environments
- Cascadable for higher bit-count applications
- Supply Voltage: 3V to 15V
- Maximum Clock Frequency: 6 MHz
- Counting Sequence: Binary (0-15)
- Package Type: DIP-16, SOIC-16
- Frequency dividers
- Event counters
- Digital timers
- Pulse generators
- Industrial control systems
- Consumer electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
