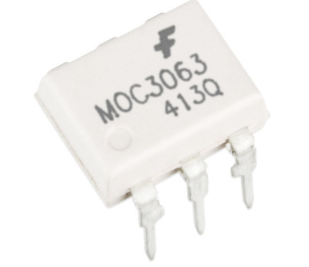

MOC3063 optocoupler
This content will be shared across all product pages.
Description: The MOC3063 is an optically isolated triac driver optocoupler. It combines an LED optically coupled to a phototriac to provide isolation between input and output circuits while allowing control of AC loads through a triac. The MOC3063 is commonly used in applications requiring isolated control of AC loads such as motors, lamps, and heaters, providing robust isolation and reliable switching performance.
Key Features:
- Optically isolated triac driver
- High isolation voltage: 5000Vrms (min)
- Low trigger current (I_FT): 5mA (max)
- Peak off-state voltage (VDRM): 600V
- Zero-crossing circuitry for low EMI (Electromagnetic Interference)
- Low input control current requirement
- Compact DIP-6 package
- Isolation Voltage: 5000Vrms (min)
- Peak Repetitive Off-State Voltage (VDRM): 600V
- Trigger Current (I_FT): 5mA (max)
- Operating Temperature Range: -40°C to +85°C
- Package Type: 6-pin DIP
- AC motor controls
- Lighting controls
- Solid-state relays (SSRs)
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Home appliances
- Industrial automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
