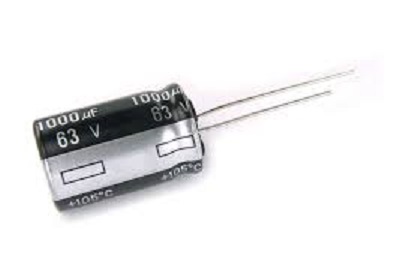

1000UF 63V Electrolytic capacitor
This content will be shared across all product pages.
Description:
The 1000µF 63V electrolytic capacitor is a high-capacitance component designed for applications requiring reliable and stable energy storage and filtering. It is commonly used in power supplies, amplifiers, and various electronic circuits to smooth voltage fluctuations and provide stable power.
Key Features:
- Capacitance: 1000µF
- Voltage Rating: 63V
- Tolerance: ±20%
- Type: Electrolytic Capacitor
- Long lifespan and high reliability
- Polarized capacitor (positive and negative leads)
- Suitable for high-frequency and high-ripple current circuits
- Capacitance: 1000µF
- Voltage Rating: 63V
- Tolerance: ±20%
- Operating Temperature Range: -40°C to +105°C
- ESR (Equivalent Series Resistance): Low
- Leakage Current: ≤0.01CV or 3µA (whichever is greater) after 2 minutes
- Dimensions: Typically 18 mm x 35 mm (Diameter x Height)
- Lead Spacing: 7.5 mm
- Weight: Approximately 5 g
- Power Supplies: Used for filtering and smoothing DC output in power supply units.
- Audio Equipment: Ideal for coupling and decoupling applications in audio amplifiers.
- Industrial Electronics: Suitable for various industrial electronic circuits requiring stable power.
- Consumer Electronics: Commonly used in televisions, monitors, and other consumer electronics.
- Automotive Electronics: Used in automotive electronic circuits for voltage stabilization.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
