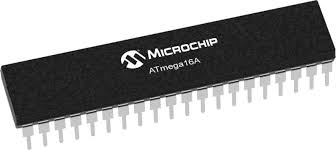

ATMEGA16A-PU AVR 8bit MCU
This content will be shared across all product pages.
The ATMEGA16A-PU is a high-performance, low-power 8-bit microcontroller from the AVR family, developed by Microchip Technology. It features 16KB of Flash memory, 1KB of SRAM, and 512B of EEPROM. This MCU is designed for a wide range of applications including consumer electronics, industrial control systems, and automotive applications, providing a rich set of features and peripherals for efficient system design.
Key Features:
- 16KB of In-System Self-Programmable Flash
- 1KB SRAM, 512B EEPROM
- 32 General Purpose I/O Lines
- 32 Working Registers
- Up to 16 MIPS Throughput at 16 MHz
- Fully Static Operation
- 8-channel, 10-bit ADC
- USART, SPI, and TWI (I2C) serial communication interfaces
- Two 8-bit Timer/Counters with Separate Prescaler
- One 16-bit Timer/Counter with Separate Prescaler
- Real Time Counter with Separate Oscillator
- External and Internal Interrupt Sources
- Power-on Reset and Programmable Brown-out Detection
- In-System Programming by On-chip Boot Program
- Operating Voltage: 2.7V - 5.5V
- CPU: 8-bit AVR
- Flash Memory: 16KB
- SRAM: 1KB
- EEPROM: 512B
- Clock Speed: Up to 16 MHz
- Operating Voltage: 2.7V to 5.5V
- ADC: 8-channel, 10-bit
- Timers: Two 8-bit, One 16-bit
- Communication Interfaces: USART, SPI, TWI (I2C)
- GPIO: 32 pins
- Power Consumption:
- Active Mode: 1.1mA at 1MHz, 1.8V
- Power-down Mode: 0.1μA at 1.8V
- Consumer Electronics
- Home Automation
- Industrial Control Systems
- Automotive Applications
- Embedded Systems
- Data Logging
- Sensor Interfaces
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
