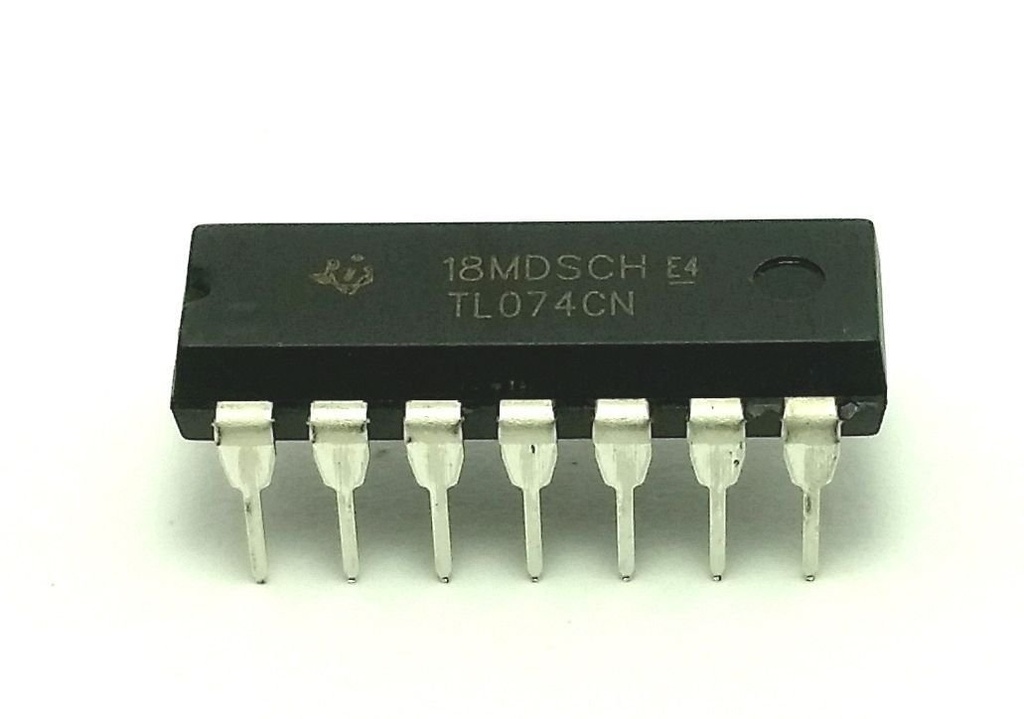

TL074CN JFET four Op Amp

https://www.hub360.cc/web/image/product.template/14751/image_1920?unique=bd1def9
(0 review)
4 sold in last 24 hours

₦ 511.63 511.63 NGN ₦ 511.63 Tax Excluded

₦ 550.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
3 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Description: The TL074CN is a quad operational amplifier (op-amp) featuring JFET input stages, known for their high input impedance and low input bias currents. This makes the TL074CN suitable for applications requiring accurate signal processing with minimal signal degradation. Key Features:
  • Quad operational amplifier in a single package
  • JFET input stages provide high input impedance
  • Low input bias current: 30 pA (typical)
  • Low offset voltage: 3 mV (max)
  • Wide bandwidth: 3 MHz
  • Low noise density: 18 nV/√Hz at 1 kHz
  • Common-Mode Rejection Ratio (CMRR): 100 dB (typical)
  • Single supply operation: 3V to 18V or dual supply operation: ±1.5V to ±9V
Technical Specifications:
  • Package Type: DIP-14
  • Supply Voltage Range: ±1.5V to ±9V (dual supply), 3V to 18V (single supply)
  • Input Voltage Range: ±15V (differential)
  • Input Offset Current: 5 pA (typical)
  • Power Consumption: 1.4 mA per amplifier
  • Operating Temperature Range: 0°C to +70°C
  • Dimensions: 19.3 mm x 6.35 mm x 3.3 mm
  • Weight: 1.02 g
Applications:
  • Audio Processing: Used in audio preamplifiers, equalizers, and mixers.
  • Signal Conditioning: Suitable for instrumentation and sensor signal conditioning.
  • Active Filters: Used in active filter circuits for frequency selection and signal processing.
  • Data Acquisition Systems: Interfaces with sensors and ADCs for accurate data acquisition.
  • Control Systems: Used in control and feedback systems for amplification and signal processing.
Datasheet: For detailed technical information, refer to the TL074CN Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
