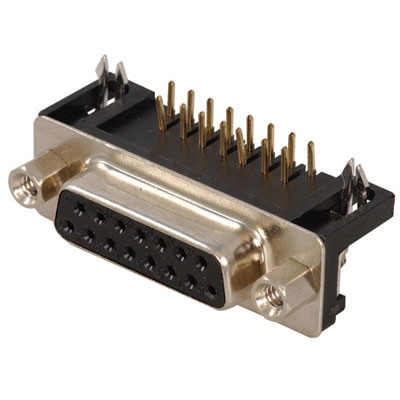

DB15 female 90 degree
This content will be shared across all product pages.
The DB15 female 90-degree connector is a type of D-subminiature connector commonly used for serial and analog video connections. It features 15 pins arranged in two rows, with a right-angle (90-degree) orientation for compact and space-saving installations.
Key Features:
- Connector Type: DB15 female (D-subminiature 15-pin female connector).
- Orientation: 90-degree right-angle orientation.
- Pin Configuration: 15 pins arranged in two rows.
- Application: Used for serial communication, VGA video connections, and other analog signal transmissions.
- Durability: Designed for reliable connections in industrial and commercial applications.
- Mounting: Typically mounted on printed circuit boards (PCBs) or in panel-mount configurations.
- Computer and server connections.
- Industrial control systems.
- Video and monitor connections.
- Test and measurement equipment.
- Robotics and automation.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
