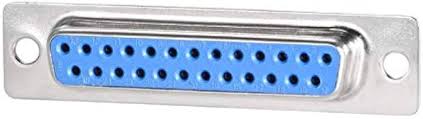

DB25 / DR25 female curved pin
This content will be shared across all product pages.
The DB25/DR25 female connector is a standard 25-pin D-subminiature connector used for serial and parallel port connections in various applications. This particular variant features curved pins, which provide secure and reliable connections in demanding environments. The connector is designed for durability and high performance, making it ideal for both commercial and industrial applications.
Key Features:
- Standard 25-pin D-subminiature connector
- Female connector with curved pins for enhanced connection security
- Robust construction for durability
- Compatible with a wide range of cables and devices
- Suitable for serial and parallel port connections
- Metal shell for EMI/RFI shielding
- Reliable contact retention
- Number of Pins: 25
- Connector Type: Female
- Pin Type: Curved pins
- Contact Material: Gold-plated contacts
- Housing Material: Metal shell
- Contact Resistance: ≤ 30mΩ
- Insulation Resistance: ≥ 1000MΩ
- Dielectric Withstanding Voltage: 1000V AC for 1 minute
- Operating Temperature Range: -55°C to +105°C
- Mounting Style: Panel mount
- Computer and Peripheral Interfaces: Used for serial and parallel port connections in computers and peripheral devices.
- Industrial Automation: Connects control systems and instrumentation in industrial environments.
- Telecommunication Systems: Facilitates communication between devices in telecom networks.
- Networking Equipment: Ensures reliable data transfer in networking hardware.
- Medical Equipment: Provides secure connections in medical devices and instrumentation.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
