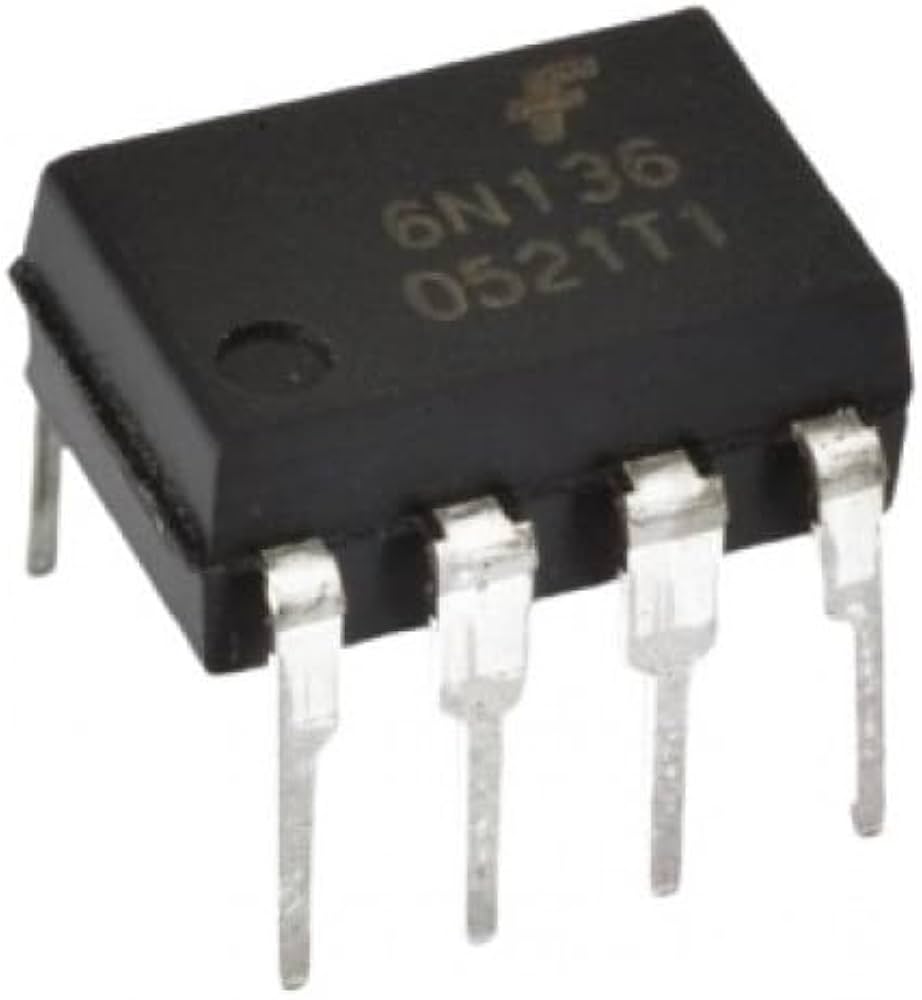

EL6N136(6N136) optocoupler
This content will be shared across all product pages.
The EL6N136 (also known as 6N136) is a high-speed optocoupler that features a GaAsP LED optically coupled to an integrated high-gain photon detector. It is designed for high-speed communication and isolation applications, providing electrical isolation between input and output while transferring high-speed digital signals. The EL6N136 offers high common-mode transient immunity and low input current, making it ideal for various industrial and communication applications.
Key Features:
- High-speed operation: 1 Mbps (typical)
- High common-mode transient immunity: 15kV/µs (min)
- Low input current: 1.6 mA (max)
- High isolation voltage: 3750 Vrms
- TTL compatible output
- Wide supply voltage range: 4.5V to 20V
- Low power consumption
- Compact 8-pin DIP/SOIC package
- Isolation Voltage: 3750 Vrms
- Data Rate: 1 Mbps (typical)
- Input Forward Voltage (VF): 1.2V (typical)
- Input Current (IF): 1.6 mA (max)
- Supply Voltage (VCC): 4.5V to 20V
- High-Level Output Voltage (VOH): VCC - 0.1V (min)
- Low-Level Output Voltage (VOL): 0.1V (max)
- Propagation Delay Time (tPHL/tPLH): 0.3µs (typical)
- Operating Temperature Range: -40°C to +85°C
- Package: 8-pin DIP/SOIC
- Data Communication: Provides electrical isolation in high-speed data communication systems.
- Industrial Control Systems: Ensures reliable signal isolation in industrial automation and control systems.
- Power Supply Isolation: Used in power supply feedback circuits to isolate control signals.
- Microcontroller Interface: Isolates microcontroller I/O signals to prevent electrical interference.
- Telecommunication Equipment: Provides isolation and signal integrity in telecom systems.
- Medical Equipment: Ensures patient safety by isolating electronic control signals.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
