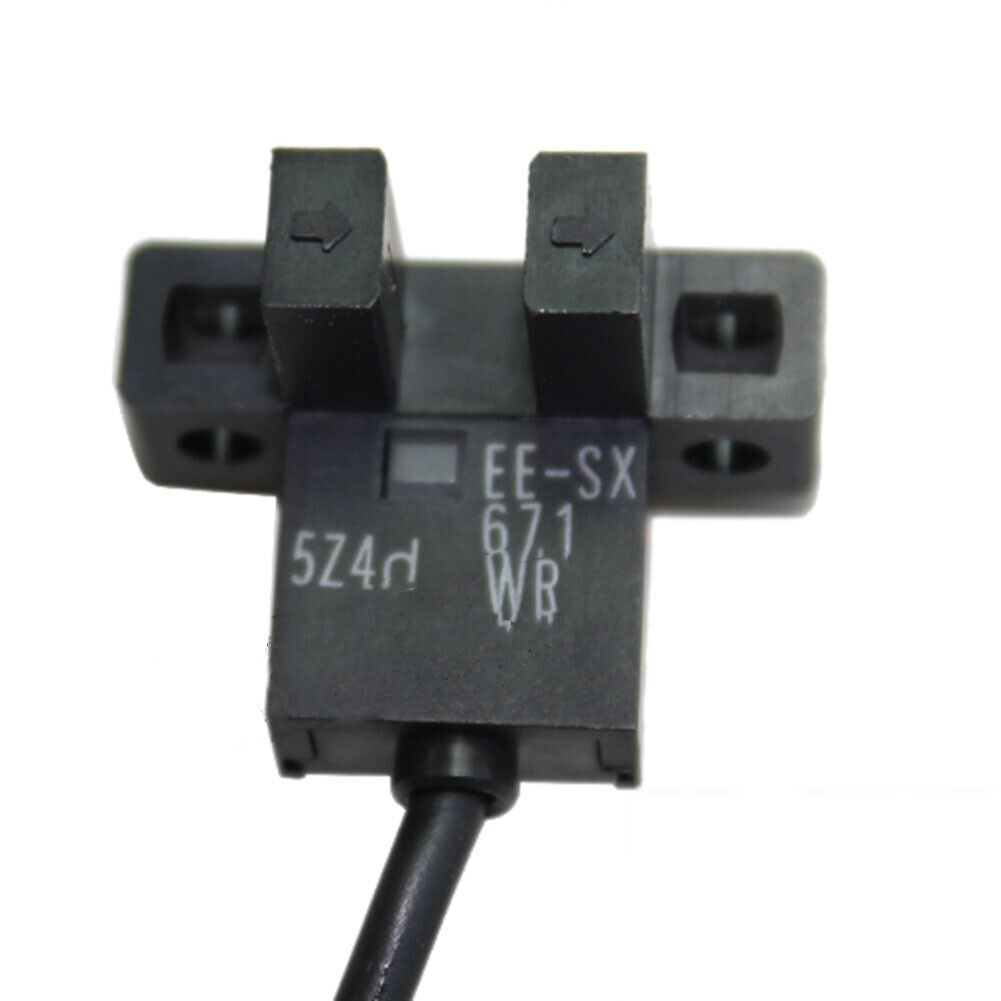

EE-SX671 photoelectric switch sensor
This content will be shared across all product pages.
The EE-SX671 Photoelectric Switch Sensor is a high-precision sensor designed for detecting the presence or absence of objects in various industrial applications. Utilizing a slot-type photoelectric configuration, this sensor is ideal for use in automation systems, packaging machines, and other equipment where accurate object detection is crucial. The EE-SX671 is known for its reliable performance, compact design, and easy integration into different systems.
Key Features:
- Slot-type photoelectric switch
- High detection accuracy
- Compact and robust design
- Easy installation and alignment
- Low power consumption
- RoHS compliant
- Detection Method: Slot-type (through-beam)
- Slot Width: 5mm
- Response Time: ≤ 1ms
- Operating Voltage: 5-24V DC
- Output Type: Transistor (NPN/PNP)
- Current Consumption: ≤ 20mA
- Operating Temperature Range: -25°C to +55°C
- Protection Rating: IP50
- Housing Material: Plastic
- Industrial automation
- Packaging machinery
- Conveyor systems
- Robotics
- Office equipment
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
