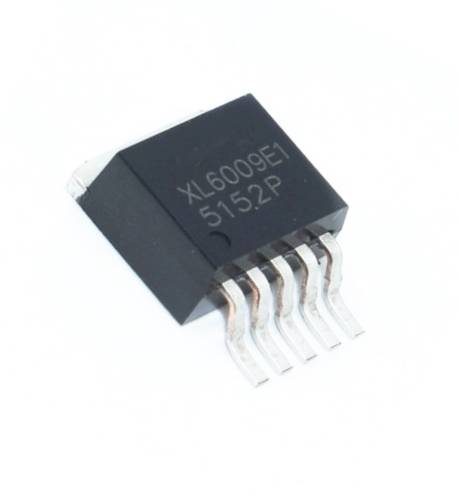

XL6009 DC-DC Boost IC
This content will be shared across all product pages.
Description: The XL6009 is a high-performance DC-DC boost converter IC capable of stepping up input voltages efficiently to higher output voltages. It is designed to provide stable and adjustable output voltages for various applications, including portable devices, battery-powered systems, and other electronics requiring higher voltage levels than the input.
Key Features:
- DC-DC boost converter IC
- Wide input voltage range
- Adjustable output voltage
- High efficiency conversion
- Integrated MOSFET switch
- Over-temperature and over-current protection
- Input Voltage Range: 3V to 32V
- Output Voltage Range: Up to 35V (adjustable)
- Switching Frequency: 400kHz (typical)
- Efficiency: Up to 94%
- Maximum Output Current: 4A
- Operating Temperature Range: -40°C to +85°C
- Package Type: SOP-8
- Portable devices
- Battery-powered systems
- LED drivers
- Boost converters
- Power supplies
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
