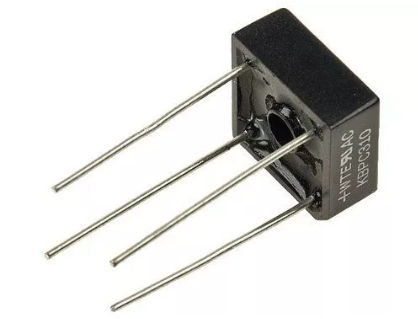

KBPC310 3A100V bridge rectifier
This content will be shared across all product pages.
Description: The KBPC310 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic circuits and power supply applications. It features a compact and efficient design suitable for low-power applications where space is limited. The bridge rectifier provides reliable rectification with low forward voltage drop and is housed in a durable package for enhanced thermal performance.
Key Features:
- Single-phase bridge rectifier
- Maximum Average Rectified Output Current (I_O): 3A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 100V
- Low forward voltage drop
- Compact and efficient design
- Reliable performance in low-power applications
- Maximum Average Rectified Output Current (I_O): 3A
- Peak Repetitive Reverse Voltage (V_RRM): 100V
- Maximum RMS Bridge Input Voltage (V_RMS): 70V
- Maximum DC Blocking Voltage (V_DC): 100V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 3A, T_A = 25°C)
- Surge Overload Rating (I_Surge): 50A
- Operating Temperature Range: -55°C to +150°C
- Package Type: KBPC
- Power supplies
- Battery chargers
- LED drivers
- Consumer electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
