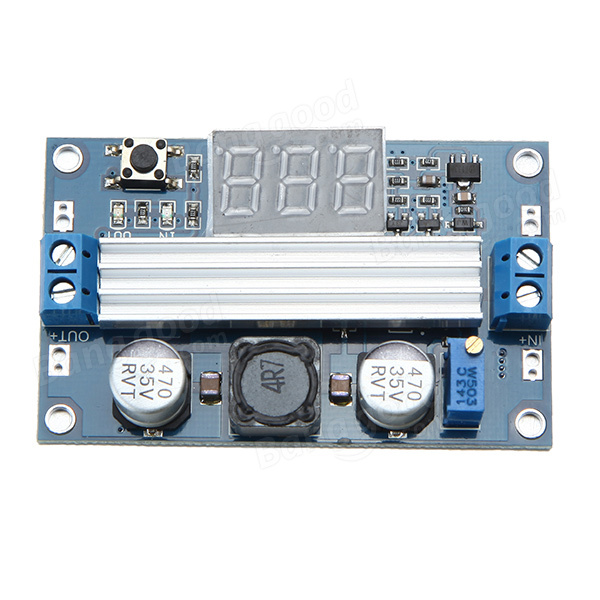

100W DC-DC 3V-35V To 3.5V-35V Adjustable Boost Voltage Module
This content will be shared across all product pages.
The 100W DC-DC adjustable boost voltage module is designed to convert a wide range of input voltages (3V to 35V) to higher output voltages (3.5V to 35V). It's commonly used in various electronic projects where a stable and adjustable DC voltage is required.
Key Features:
- Input Voltage Range: 3V to 35V DC.
- Output Voltage Range: 3.5V to 35V DC (adjustable).
- Output Current: Up to 6A (maximum output power is 100W).
- Adjustability: Output voltage can be adjusted via a potentiometer on the module.
- Efficiency: High efficiency conversion, typically around 90%.
- Protection: Built-in over-current protection, over-temperature protection, and short-circuit protection.
- Cooling: Generally requires adequate cooling due to high power handling capability.
- Applications: Suitable for powering devices requiring higher voltage than available from the power source.
- Dimensions: Compact size for integration into various projects.
- Conversion Method: Boost (step-up) voltage conversion.
- Control Interface: Typically adjusted via an onboard potentiometer.
- Indicators: May include LED indicators for power and status.
- Mounting: Mounting holes or pads for easy installation.
- Powering high voltage electronics from lower voltage sources.
- Battery-powered devices requiring higher voltages.
- Solar power systems, DIY projects, and prototyping.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
