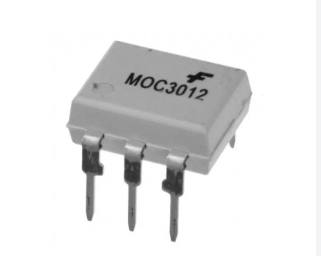

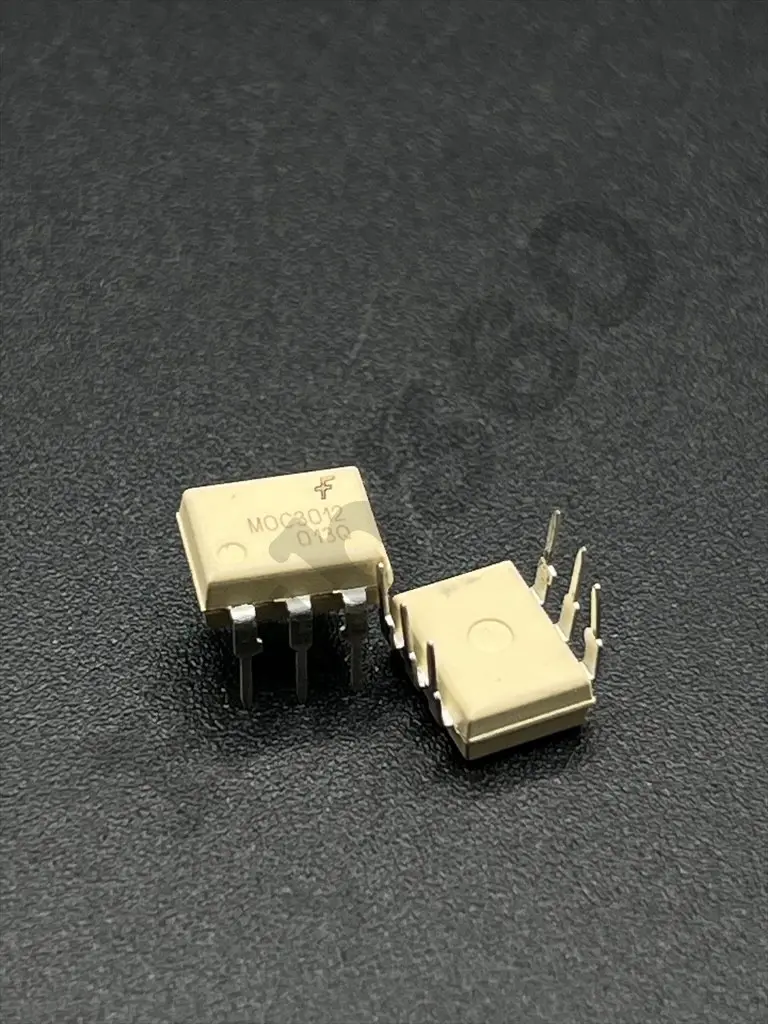

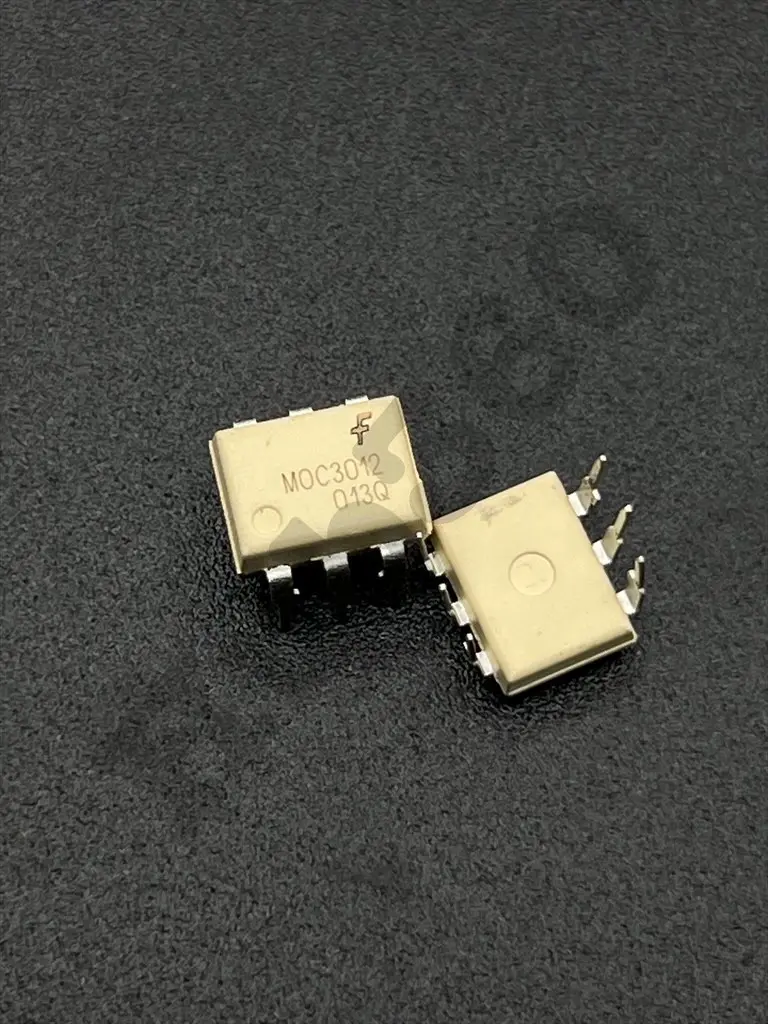

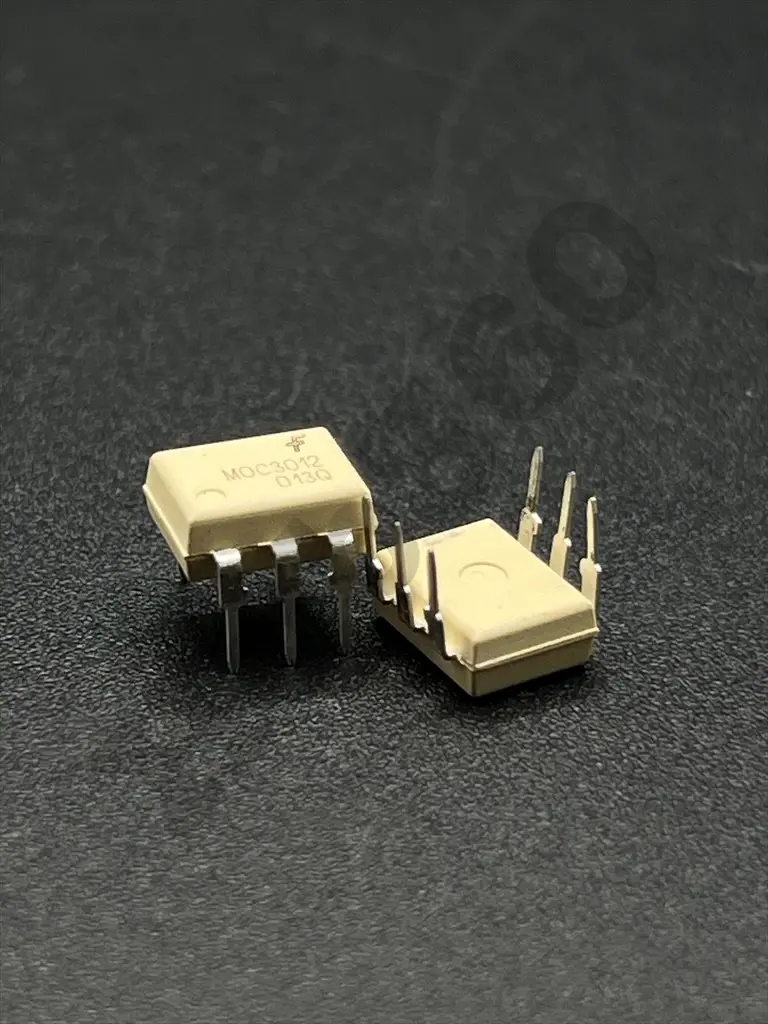

MOC3012 optocoupler
This content will be shared across all product pages.
The MOC3012 optocoupler is an optically isolated triac driver that features a gallium arsenide (GaAs) infrared LED optically coupled to a silicon bilateral switch (triac). This device is designed for interfacing low voltage logic to 115/240 VAC applications, such as driving resistive and inductive loads including motors, solenoids, and lamps.
Key Features:
- Zero voltage crossing functionality to minimize noise
- High input-to-output isolation voltage
- Compact 6-pin DIP package
- High peak blocking voltage: 600 V
- Simplifies logic control of AC power
- Safety and regulatory approvals:
- UL approved
- CSA approved
- VDE approved (optional)
- Package Type: 6-pin DIP
- Isolation Voltage: 5300 Vrms
- Forward Voltage (VF): 1.2 V (Typical)
- Reverse Voltage (VR): 6 V
- Continuous Forward Current (IF): 60 mA (Maximum)
- Peak Forward Current (IFP): 1 A (Maximum, 1 µs pulse)
- Power Dissipation (PD): 120 mW (Maximum)
- Peak Blocking Voltage (VDRM): 600 V
- Peak On-State Current (ITM): 1 A (Maximum, repetitive)
- Holding Current (IH): 280 µA (Typical)
- Critical Rate of Rise of Off-State Voltage (dv/dt): 600 V/µs
- Operating Temperature Range (TOPR): -40°C to +85°C
- Storage Temperature Range (TSTG): -40°C to +150°C
- Soldering Temperature (TSOL): 260°C for 10 seconds
- AC Motor Starters: Provides isolated control for starting AC motors.
- Solenoid/Valve Controls: Controls AC-powered solenoids and valves.
- Static Power Switches: Acts as an interface between logic and power switches.
- Temperature Controls: Used in HVAC systems for temperature regulation.
- Lighting Controls: Controls AC lighting systems.
- Consumer Appliances: Provides isolated control for household appliances.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
