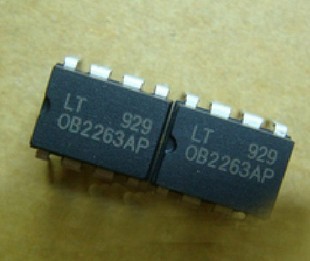

OB2263AP common power chip
This content will be shared across all product pages.
The OB2263AP is a DC-DC converter IC designed for efficient voltage regulation in various electronic applications, ensuring stable and reliable power supply conversion.
Key Features:
- Input Voltage Range: Up to 36V
- Output Voltage: Adjustable (based on external components)
- Output Current: Up to several amps (specific current depends on configuration)
- Switching Frequency: Typically adjustable, around 100 kHz to 1 MHz
- Efficiency: High efficiency, up to 95%
- Protection Features: Includes overcurrent protection, thermal shutdown, and under-voltage lockout
- Startup: Soft-start function to reduce inrush current
- Package Type: Typically TO-220, TO-263, or similar power packages
- Operating Temperature Range: -40°C to +85°C (depending on package and manufacturer specifications)
- Output Voltage Accuracy: Typically ±2% or better
- Regulation: Line and load regulation typically around 0.5% or better
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
