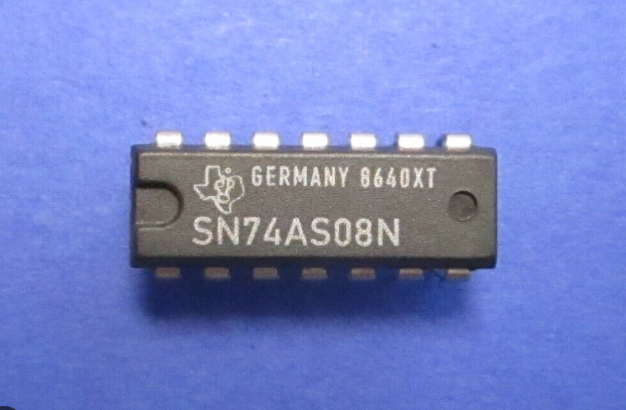

SN74AS08N (74AS08)
This content will be shared across all product pages.
Description:
The SN74AS08N is a high-speed, low-power quad 2-input AND gate from the Advanced Schottky TTL (74AS) family. This device is designed for high-performance applications and provides significant improvements in speed and power consumption over standard TTL logic gates. The SN74AS08N is ideal for use in a variety of digital circuits requiring AND logic operations.
Key Features:
- Quad 2-input AND gates
- Advanced Schottky TTL technology
- High-speed operation
- Low power consumption
- Compatible with TTL logic levels
- Standard 14-pin DIP package
- Package Type: 14-pin DIP
- Supply Voltage (V_CC): 4.5V to 5.5V
- Input Voltage (V_IN): 0V to V_CC
- Output Voltage (V_OUT): 0V to V_CC
- Input High Voltage (V_IH): 2V (minimum)
- Input Low Voltage (V_IL): 0.8V (maximum)
- Output High Voltage (V_OH): 2.7V (minimum) at I_OH = -2mA
- Output Low Voltage (V_OL): 0.5V (maximum) at I_OL = 20mA
- Input Current (I_IN): 20µA (maximum) at V_IN = 2.7V
- Quiescent Supply Current (I_CC): 4mA (maximum)
- Propagation Delay Time: 3.5ns (typical)
- Operating Temperature Range: 0°C to +70°C
- Computing Systems: High-speed logic operations in microprocessors and digital systems.
- Communication Equipment: Signal processing and control in communication devices.
- Industrial Control: Fast logic control in automation and control systems.
- Consumer Electronics: Digital logic functions in various high-speed electronic devices.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
