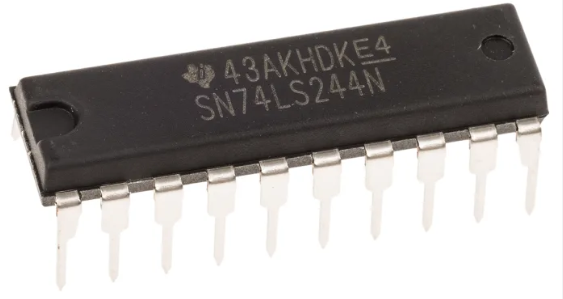

SN74LS244N (74LS244) Logic chip
This content will be shared across all product pages.
Description:
The SN74LS244N is an octal buffer/line driver IC designed to be used as a bus interface for various digital systems. It features eight independent buffers with tri-state outputs, each capable of driving outputs directly or serving as input buffers for systems requiring high-speed TTL-compatible logic. This IC is particularly useful in applications where multiple devices need to share data lines while maintaining signal integrity and noise immunity.
Key Features:
- Octal buffer/line driver with tri-state outputs
- TTL-compatible inputs and outputs
- High-speed operation
- Buffering capability for interfacing between different logic families
- Tri-state outputs for bus-oriented applications
- Output current sinking capability for driving LEDs or other devices
- Package Type: 20-pin DIP (Dual In-line Package)
- Supply Voltage (VCC): 4.75V to 5.25V
- Input Voltage (VIN): 0V to VCC
- Output Voltage (VOUT): 0V to VCC
- Input High Voltage (VIH): 2V (min) at VCC = 5V
- Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
- Output Current (IOH, IOL): ±8 mA (max)
- Quiescent Supply Current (ICC): 8 mA (typical) at VCC = 5V
- Operating Temperature Range: 0°C to +70°C
- Bus interface for microprocessors and peripherals
- Memory address decoding circuits
- Data transmission and buffering in digital systems
- LED driving circuits
- Signal amplification and isolation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
