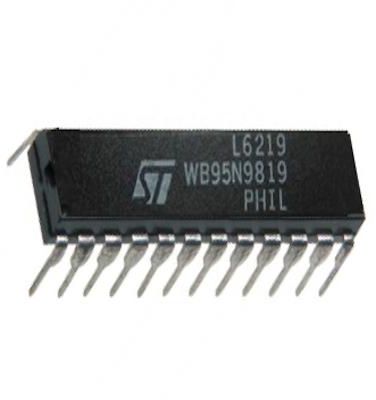

L6219 motor driver

https://www.hub360.cc/web/image/product.template/13469/image_1920?unique=bd1def9
(0 review)
6 sold in last 24 hours

₦ 2,325.58 2325.58 NGN ₦ 2,325.58 Tax Excluded

₦ 2,500.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
4 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Description: The L6219 is a dual full-bridge driver designed to drive bipolar stepper motors. It integrates control logic, current sensing, and drive circuitry into a single package, simplifying the design of motor control systems. The L6219 is suitable for use in a wide range of applications, including printers, copiers, and other automated machinery. Key Features:
  • Dual full-bridge driver
  • Operating Voltage Range: 10V to 46V
  • Output Current: Up to 750mA per bridge
  • Low saturation voltage
  • Internal clamp diodes
  • Thermal shutdown protection
  • Cross conduction protection
  • Current sensing and control
Technical Specifications:
  • Package Type: Multiwatt15
  • Supply Voltage (Vcc): 10V to 46V
  • Output Current (Io): 750mA per bridge
  • Saturation Voltage (Vce(sat)): 1.8V @ 500mA
  • Thermal Shutdown: Yes
  • Dimensions: 22.3 mm x 4.5 mm x 17.6 mm
  • Weight: 3 g
Applications:
  • Printers: Used for controlling stepper motors in printing mechanisms.
  • Copiers: Drives stepper motors in copier machines for precise paper handling.
  • Automated Machinery: Suitable for use in various types of automated equipment requiring stepper motor control.
  • Robotics: Ideal for driving stepper motors in robotic applications.
  • CNC Machines: Used for controlling stepper motors in computer numerical control (CNC) machinery.
Datasheet: For detailed technical information, refer to the L6219 Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
