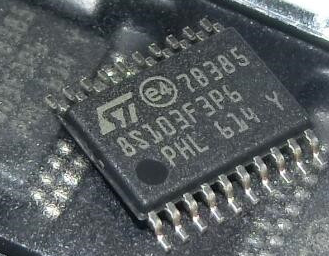

The STM8S103F3P6 is an 8-bit microcontroller from STMicroelectronics, designed for high-performance and low-power applications. Based on the STM8 core, it integrates a rich set of peripherals, making it suitable for a wide range of embedded applications. The microcontroller is packaged in a compact TSSOP20 form factor, ideal for space-constrained designs. Key Features:
  • Microcontroller Core: STM8
  • Clock Speed: Up to 16 MHz
  • Program Memory: 8 KB Flash
  • Data Memory: 1 KB RAM
  • EEPROM: 640 bytes
  • I/O Pins: 16 general-purpose I/O pins
  • Communication Interfaces: UART, SPI, I2C
  • Analog-to-Digital Converter (ADC): 10-bit, 5-channel ADC
  • Timers/Counters: 2 16-bit timers, 1 8-bit timer
  • Operating Voltage: 2.95V to 5.5V
  • Package Type: TSSOP-20
Technical Specifications:
  • CPU: STM8 8-bit microcontroller core
  • Operating Frequency: Up to 16 MHz
  • Program Memory Size: 8 KB Flash
  • Data Memory Size: 1 KB RAM
  • EEPROM: 640 bytes
  • I/O Pins: 16 GPIO pins
  • Communication Interfaces: UART, SPI, I2C
  • Analog-to-Digital Converter (ADC): 10-bit, 5-channel
  • Timers: 2 16-bit timers, 1 8-bit timer
  • Operating Voltage: 2.95V to 5.5V
  • Operating Temperature Range: -40°C to +85°C
  • Package Type: TSSOP-20
Applications:
  • General Embedded Systems: Suitable for various control and automation applications.
  • Consumer Electronics: Used in home appliances, remote controls, and other consumer devices.
  • Industrial Control: Ideal for industrial automation, monitoring, and control systems.
  • IoT Devices: Can be used in Internet of Things (IoT) applications for sensor interfacing and control.
  • Automotive Electronics: Suitable for non-safety automotive applications requiring general-purpose microcontroller functionality.
Datasheet: For detailed technical information, refer to the STM8S103F3P6 Microcontroller Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
