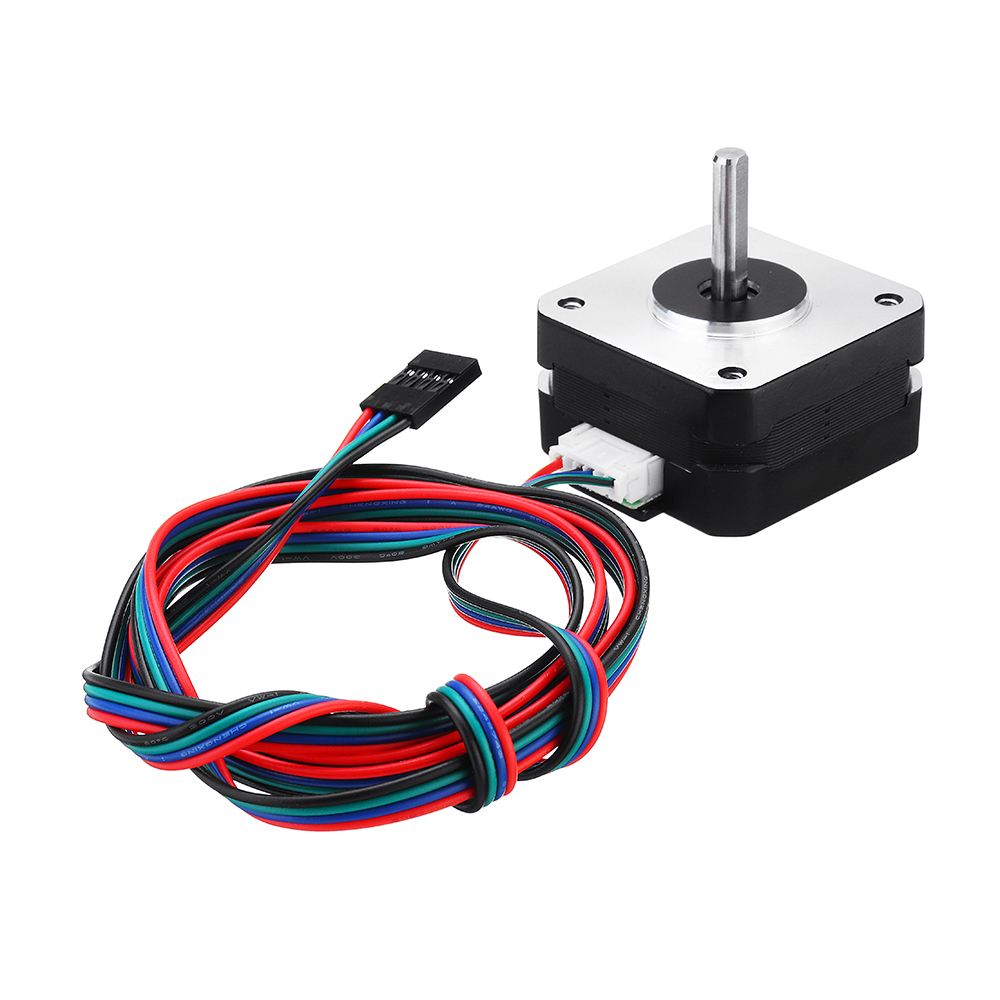

Nema 17 17HS4023 3D printer Titan Extruder stepper motor
This content will be shared across all product pages.
Description:
The Nema 17 17HS4023 stepper motor is specifically designed for use with Titan Extruders in 3D printers, offering precise control and reliability. It features a standard Nema 17 frame size with a 1.8° step angle (200 steps per revolution), making it suitable for applications requiring accurate positioning and torque. This stepper motor is ideal for driving filament through 3D printer extruders, ensuring smooth and consistent material flow during printing.
Key Features:
- Model: Nema 17 17HS4023
- Step Angle: 1.8°
- Holding Torque: 48 Ncm (68 oz.in)
- Rated Voltage: 12V (DC)
- Rated Current: 1.33A
- Phase Resistance: 2.1 ohms
- Phase Inductance: 4.0 mH
- Shaft Diameter: 5 mm
- Shaft Length: 24 mm
- 4-wire bipolar configuration for easy connection
- Frame Size: Nema 17 (42 x 42 mm)
- Mounting Holes: Standard Nema 17 hole pattern
- Weight: Approximately 280 g
- Operating Temperature: -20°C to +50°C
- Insulation Class: B (130°C)
- 3D Printers (Compatible with Titan Extruders)
- CNC Machines
- Robotics and Automation
- Motion Control Systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
