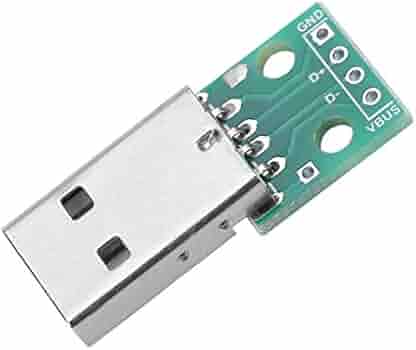

Male USB module
This content will be shared across all product pages.
Description: The Male USB Module is a versatile component designed to facilitate easy USB connectivity in various electronic projects. This module includes a standard male USB connector, making it ideal for custom USB cable creation and integration into DIY and prototype projects. It is widely used in applications requiring USB communication and power supply.
Key Features:
- Standard Male USB Connector
- USB 2.0 and USB 3.0 compatible options
- Durable and robust design
- Easy to solder and mount on custom PCBs
- Compact size for efficient use of space
- RoHS compliant
- Connector Type: USB Type-A Male
- USB Standard: USB 2.0 / USB 3.0
- Maximum Data Transfer Rate: 480 Mbps (USB 2.0) / 5 Gbps (USB 3.0)
- Contact Resistance: ≤30mΩ
- Insulation Resistance: ≥100MΩ
- Operating Temperature Range: -25°C to +85°C
- Shell Material: Nickel-plated brass
- Insulator Material: High-temperature thermoplastic
- Custom USB Cable Assemblies
- DIY Electronics Projects
- Prototyping USB Devices
- Integrating USB Connectivity in Embedded Systems
- Connecting Peripheral Devices to Microcontrollers
- Educational and Hobbyist Projects
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
