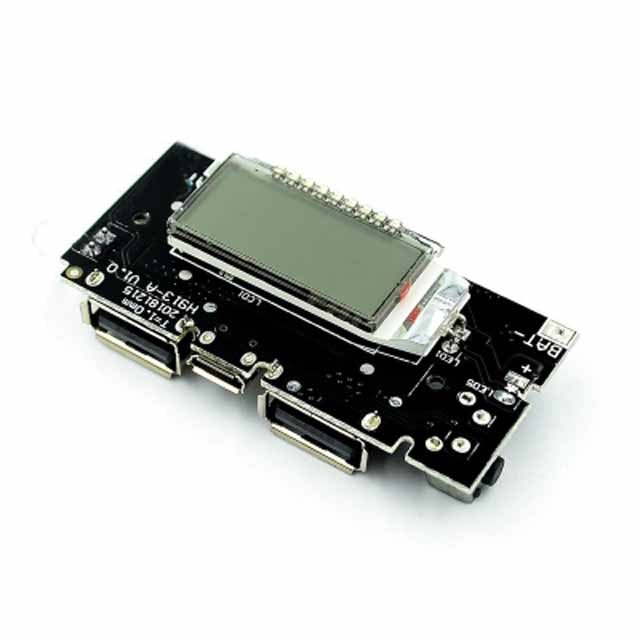

power bank module with LCD display
This content will be shared across all product pages.
Description: The Power Bank Module with LCD Display is a versatile and user-friendly module designed to create custom power banks. This module includes an integrated LCD display that shows real-time information such as battery level, voltage, and current, providing users with detailed insights into the power bank's status. Ideal for DIY enthusiasts, this module enables the creation of portable charging solutions for smartphones, tablets, and other USB-powered devices.
Key Features:
- Integrated LCD display for real-time monitoring
- Displays battery level, voltage, and current
- USB output for charging devices
- Supports various battery configurations (typically 18650 batteries)
- Built-in protection features (overcharge, over-discharge, overcurrent, short circuit)
- Compact and easy to assemble
- High efficiency and low standby current
- RoHS compliant
- Input Voltage: Typically 5V (via micro USB or USB-C)
- Output Voltage: 5V (standard USB output)
- Output Current: Up to 2.1A (depends on battery and model)
- Battery Type: Supports 18650 Li-ion batteries (typically 1 to 4 cells)
- Display: LCD screen showing battery level, voltage, current
- Protection Features: Overcharge, over-discharge, overcurrent, short circuit protection
- Efficiency: Up to 90%
- Dimensions: Varies by model, typically compact and portable
- Weight: Lightweight, varies by model
- DIY Power Banks
- Portable Charging Solutions
- Emergency Backup Power
- USB-Powered Devices
- Educational and Experimental Projects
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
