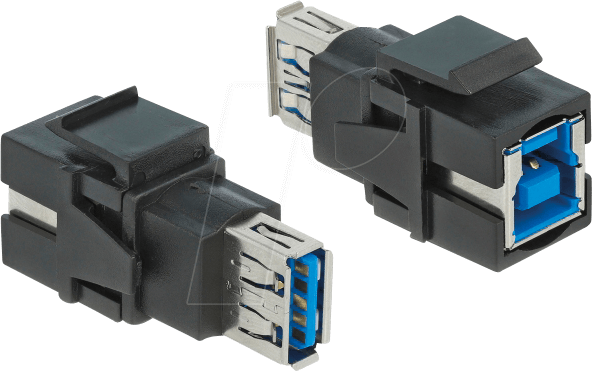

Female USB 3.0 module
This content will be shared across all product pages.
Description:
The female USB 3.0 module provides a versatile interface solution for integrating USB 3.0 connectivity into various devices and systems. It features a standard USB 3.0 Type-A connector, designed for easy connection and compatibility with USB 3.0 devices such as external hard drives, high-speed data transfer devices, and peripherals requiring fast data transmission rates. This module is ideal for applications where high-speed data transfer and reliable connectivity are essential, offering a robust and standardized solution for USB 3.0 interface requirements.
Key Features:
- Connector Type: USB 3.0 Type-A Female
- Standard: USB 3.0 SuperSpeed compliant
- Compatibility: Backward compatible with USB 2.0 and USB 1.1 devices
- Mounting: Panel mountable for secure installation in enclosures and devices
- Durability: Designed for long-lasting performance and reliability in demanding environments
- Easy Integration: Suitable for integration into custom electronics projects and industrial applications
- Data Transfer Rates: Up to 5 Gbps (SuperSpeed)
- Power Rating: 900 mA max current per port
- Operating Temperature: -25°C to +85°C
- Connector Material: Nickel-plated brass for corrosion resistance
- Dimensions: Compact design for space-efficient installations
- Industrial Control Systems
- Embedded Systems
- External Storage Devices
- Medical Devices
- Test and Measurement Equipment
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
