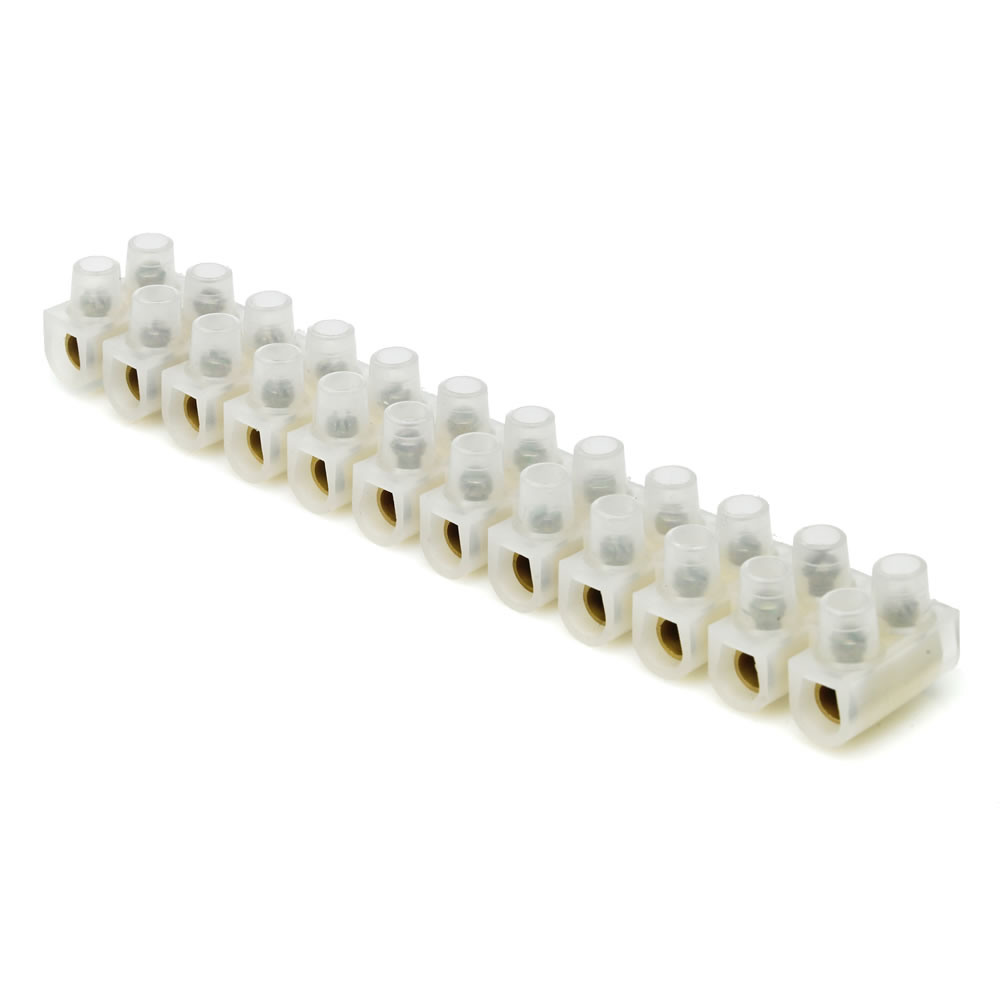

X3-3012 12bit 30A terminal Block
This content will be shared across all product pages.
Description: The X3-3012 12-bit 30A Terminal Block is a robust and reliable terminal block designed for high-current applications. With its 12-bit configuration, it allows for secure and efficient electrical connections in various industrial and commercial settings. This terminal block supports a maximum current of 30A, making it ideal for heavy-duty wiring and power distribution tasks.
Key Features:
- 12-bit terminal configuration
- Rated current: 30A
- High-quality materials for durability
- Secure and reliable connections
- Easy installation and maintenance
- Suitable for high-current applications
- RoHS compliant
- Terminal Type: Screw terminal
- Number of Terminals: 12
- Rated Current: 30A
- Rated Voltage: 600V
- Wire Size: 10-22 AWG
- Insulation Material: Flame-retardant polyamide
- Contact Material: Tin-plated copper
- Operating Temperature Range: -40°C to +105°C
- Mounting Type: DIN rail or panel mount
- Industrial Control Systems
- Power Distribution Units
- Electrical Panels
- Heavy Machinery
- HVAC Systems
- Renewable Energy Systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
