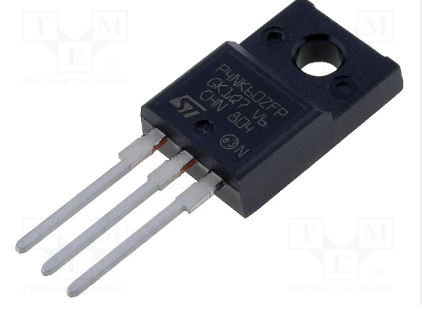

STP4NK60ZFP 4N60 FET
This content will be shared across all product pages.
The STP4NK60ZFP is a 600V, 4A N-channel Power MOSFET designed for high voltage switching applications. With its low on-resistance and fast switching capabilities, it is ideal for use in power supplies, converters, and motor control circuits. The fully encapsulated TO-220FP package ensures excellent thermal performance and electrical insulation, making it suitable for various industrial and consumer applications.
Key Features:
- High Voltage Capability: 600V drain-source voltage (V_DS)
- Current Handling: 4A continuous drain current (I_D)
- Low On-Resistance: R_DS(on) of 3.2Ω for efficient performance
- Fast Switching: Quick transition times for improved efficiency
- Thermal Performance: Fully encapsulated TO-220FP package for enhanced thermal management
- Safe Operating Area: Wide range of safe operating conditions
- Drain-Source Voltage (V_DS): 600V
- Continuous Drain Current (I_D): 4A
- Pulsed Drain Current (I_DM): 16A
- Gate-Source Voltage (V_GS): ±30V
- On-Resistance (R_DS(on)): 3.2Ω
- Total Gate Charge (Q_g): 20nC
- Gate Threshold Voltage (V_GS(th)): 3V (max)
- Power Dissipation (P_D): 30W
- Operating Temperature Range: -55°C to +150°C
- Package: TO-220FP
- Weight: 1.5 grams
- Switching power supplies
- DC-DC converters
- Motor control circuits
- High voltage lighting systems
- Industrial power management
- Consumer electronics
- Circuit Integration: Connect the FET in your circuit as per the design requirements, ensuring proper orientation of the gate, drain, and source terminals.
- Gate Drive: Use an appropriate gate drive voltage (typically 10V to 15V) to fully turn on the MOSFET and achieve low on-resistance.
- Thermal Management: Implement proper heat sinking or cooling to manage thermal dissipation and maintain optimal performance.
- Load Control: Utilize the MOSFET to control high voltage loads, ensuring that the current and voltage ratings are within specified limits.
- Switching: Take advantage of the fast switching characteristics to improve the efficiency of power conversion and control applications.
- Ensure the MOSFET is operated within its specified voltage and current limits to avoid damage.
- Handle with care to prevent electrostatic discharge (ESD) damage.
- Implement proper thermal management to avoid overheating.
