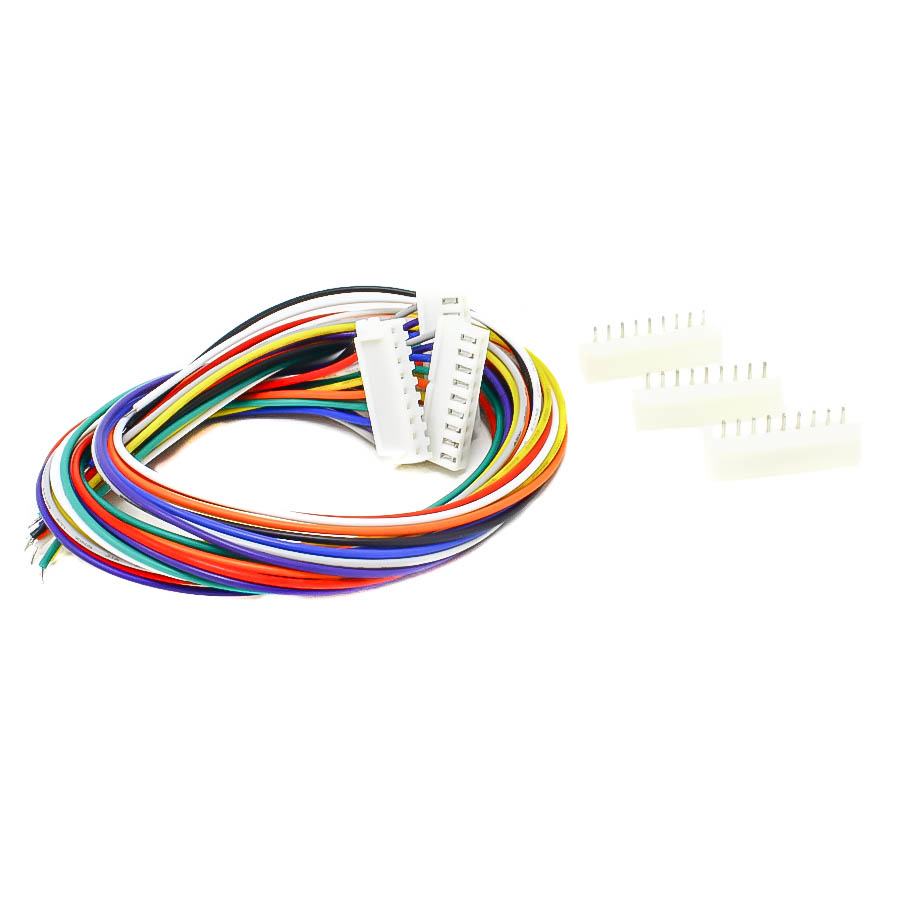

XH-9P 9 pin cable with socket
This content will be shared across all product pages.
Description: The XH-9P is a 9-pin cable assembly with a socket connector designed for various electrical and electronic applications. It provides a reliable connection between devices, offering versatility and ease of use in connecting peripherals, sensors, actuators, and other components within electronic circuits and systems.
Key Features:
- 9-pin female socket connector
- Durable and secure connection
- Suitable for various electronic applications
- Easy to install and use
- Connector Type: XH
- Number of Pins: 9
- Interconnecting electronic modules
- Robotics
- DIY electronics projects
- Sensor connections
- Actuator connections
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
