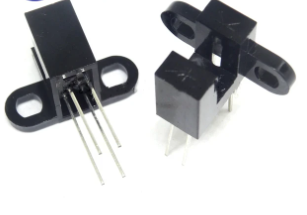

GK152 slot optocoupler
This content will be shared across all product pages.
Description: The GK152 is a slot optocoupler designed for precise and reliable optical sensing in various electronic circuits. This optocoupler features a phototransistor output that ensures high sensitivity and rapid response times. It is ideal for applications such as object detection, position sensing, and encoder feedback where accurate optical isolation is essential. The slot design facilitates easy alignment and integration into existing systems.
Key Features:
- Slot optocoupler with phototransistor output
- High sensitivity and fast response times
- Accurate and reliable optical sensing
- Easy alignment and integration
- RoHS compliant
- Input Diode Forward Voltage (V_F): 1.2V (typical)
- Input Diode Reverse Voltage (V_R): 5V
- Collector-Emitter Voltage (V_CEO): 30V
- Emitter-Collector Voltage (V_ECO): 5V
- Collector Current (I_C): 20mA
- Slot Width: 3.2mm
- Response Time: 10µs (typical)
- Operating Temperature Range: -40°C to +85°C
- Package Type: Through Hole
- Object detection
- Position sensing
- Encoder feedback
- Automation systems
- Industrial controls
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
