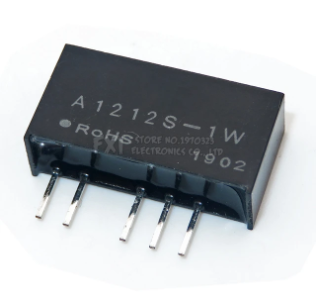

A1212S-1W 12V DC-DC power isolator
This content will be shared across all product pages.
Description: The A1212S-1W is a 12V DC-DC power isolator designed for applications requiring electrical isolation and efficient voltage conversion. This compact and robust module ensures stable performance in environments where noise reduction and protection against electrical interference are crucial. It is suitable for use in industrial control systems, medical devices, communication equipment, and other electronic circuits that demand reliable power isolation and voltage regulation.
Key Features:
- 12V DC-DC power isolator
- High isolation voltage
- Efficient voltage conversion
- Compact and robust design
- Low ripple and noise
- RoHS compliant
- Input Voltage: 12V
- Output Voltage: 12V
- Output Power: 1W
- Isolation Voltage: 1000VDC
- Efficiency: Up to 80%
- Operating Temperature Range: -40°C to +85°C
- Package Type: SIP
- Industrial control systems
- Medical devices
- Communication equipment
- Data acquisition systems
- Power management circuits
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
