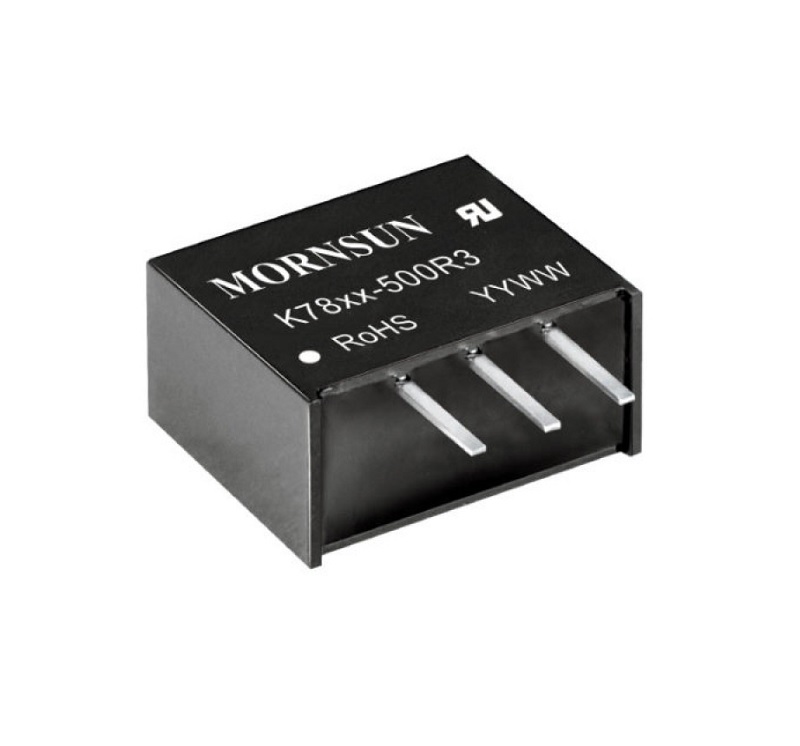

K7805-500 DC-DC power module
This content will be shared across all product pages.
Description: The K7805-500 is a DC-DC power module designed to convert input voltages to a stable 5V DC output voltage. It is commonly used in electronic circuits and devices where a reliable and regulated 5V power supply is required. The module provides efficient power conversion with low ripple and noise, making it suitable for various applications in embedded systems, robotics, IoT devices, and more.
Key Features:
- Input Voltage: Typically 6V to 36V DC
- Output Voltage: 5V DC
- Output Current: Up to 500mA
- Compact and lightweight design
- Low ripple and noise
- Overcurrent and overtemperature protection
- High efficiency conversion
- Input Voltage Range: 6V to 36V DC
- Output Voltage: 5V DC ±2%
- Output Current: Up to 500mA
- Efficiency: Typically 85% to 95%
- Operating Temperature Range: -40°C to +85°C
- Module Size: Compact, typically PCB-mounted
- Embedded systems
- Robotics
- IoT devices
- Battery-powered applications
- Consumer electronics
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
