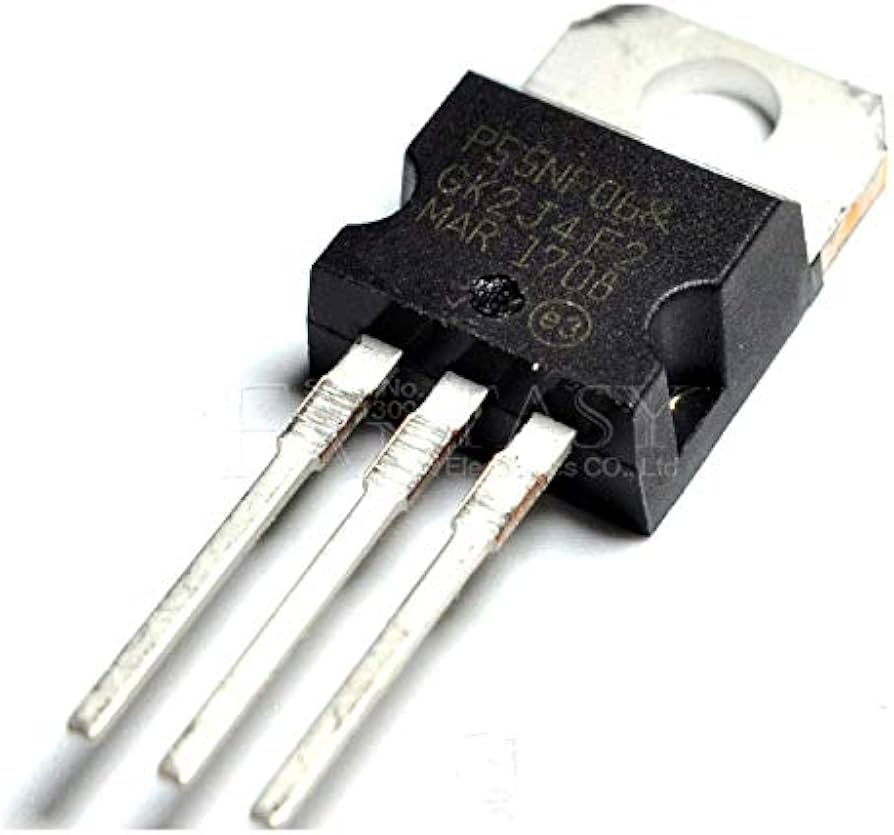

STP55NF06 FET
This content will be shared across all product pages.
Description: The STP55NF06 is an N-channel power MOSFET designed for high current, high speed switching applications. It is widely used in power management, motor control, and DC-DC converters. With its low on-resistance and fast switching capabilities, the STP55NF06 ensures efficient performance in various electronic circuits. The TO-220 package provides excellent thermal performance and ease of mounting.
Key Features:
- N-channel enhancement mode power MOSFET
- Low on-resistance for high efficiency
- High current handling capability
- Fast switching speed
- Rugged and reliable design
- RoHS compliant
- Drain-Source Voltage (V_DS): 60V
- Continuous Drain Current (I_D): 50A
- Pulsed Drain Current (I_DM): 220A
- Gate-Source Voltage (V_GS): ±20V
- On-Resistance (R_DS(on)): 0.018Ω (max) at V_GS = 10V, I_D = 27.5A
- Total Gate Charge (Q_g): 67nC (typical)
- Rise Time (t_r): 55ns
- Fall Time (t_f): 45ns
- Package Type: TO-220
- Power management
- Motor control
- DC-DC converters
- Load switching
- Battery protection
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
