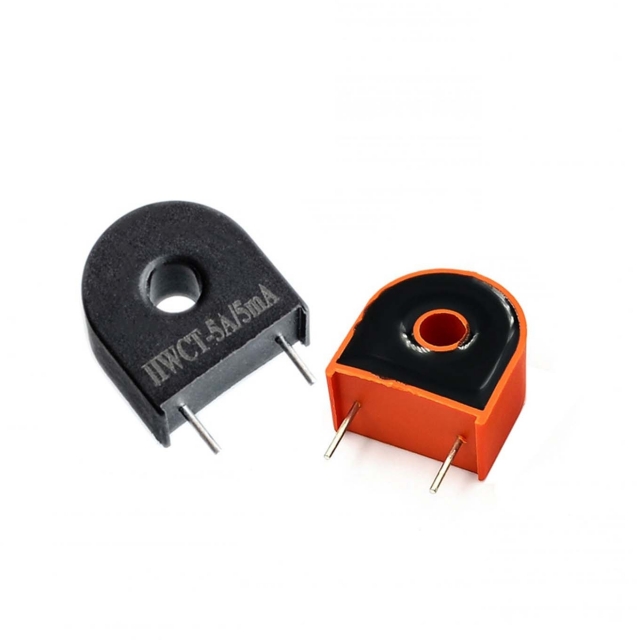

HWCT-5A/5mA AC current sensor
This content will be shared across all product pages.
Description:
The HWCT-5A/5mA AC current sensor is a compact and non-invasive current transformer designed for accurate measurement of AC currents up to 5A. It operates on the principle of magnetic induction without the need to physically break the circuit being monitored, making it ideal for applications where electrical isolation and ease of installation are required. The sensor outputs a proportional AC current signal, typically 5mA per ampere of primary current, facilitating interface with microcontrollers, data loggers, and other measurement devices.
Key Features:
- Non-invasive current measurement up to 5A AC
- High accuracy and linearity
- Low insertion loss and low phase shift
- Compact and lightweight design
- Wide operating temperature range
- Suitable for AC current monitoring in various applications
- Maximum Primary Current: 5A AC
- Turns Ratio: 1:1000
- Output Current: 5mA AC (at rated current)
- Frequency Range: 50Hz to 60Hz
- Accuracy: Typically ±1%
- Output Signal: Proportional AC current signal
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Compact and varies by model
- Energy Monitoring Systems
- Power Meters
- Motor Control Systems
- HVAC Systems
- Renewable Energy Systems
- Industrial Automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
