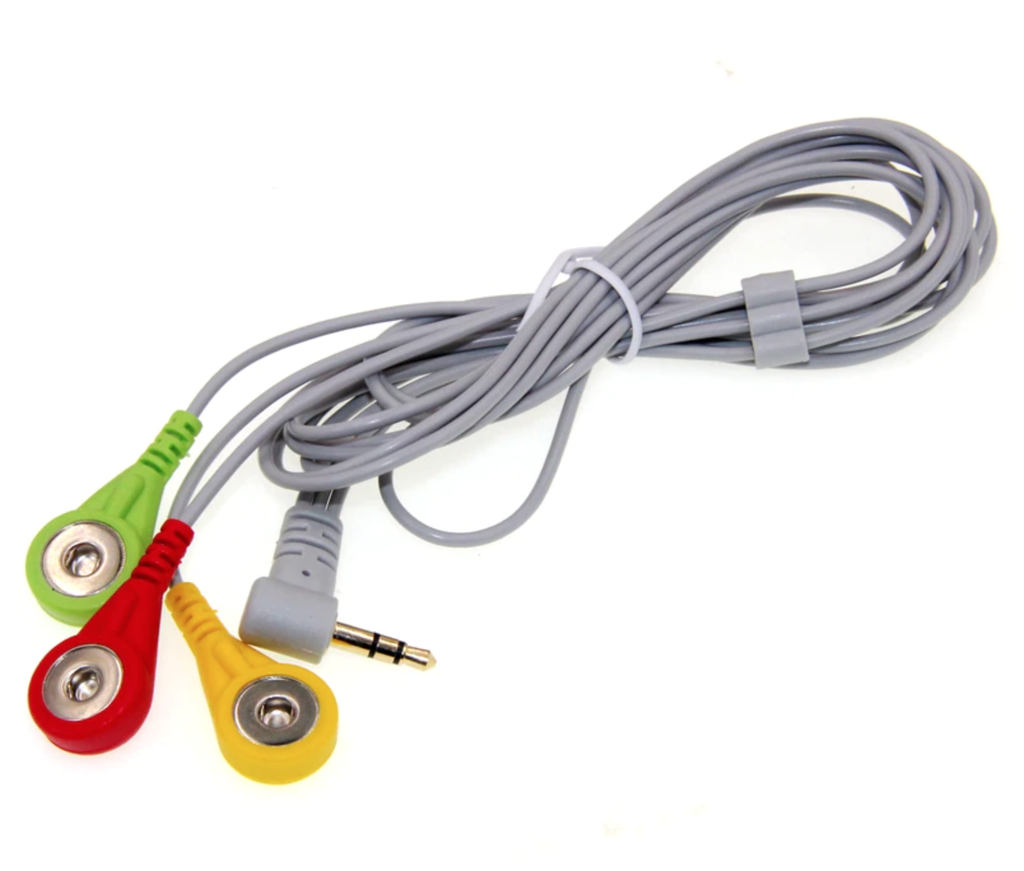

ECG EMG EKG sensor electrode
This content will be shared across all product pages.
Description: The ECG EMG EKG Sensor Electrode is a specialized electrode designed for electrocardiogram (ECG), electromyogram (EMG), and electroencephalogram (EEG) measurements. It provides reliable electrical contact between the skin and the sensing equipment, ensuring accurate and clear signal acquisition in medical and research applications. This electrode is commonly used in hospitals, clinics, and research laboratories for monitoring heart activity, muscle activity, and brainwaves.
Key Features:
- Compatible with ECG, EMG, and EKG systems
- Provides stable electrical contact
- Latex-free and hypoallergenic materials
- Flexible and easy to apply
- Disposable and reusable options available
- Integrated gel for enhanced conductivity
- RoHS compliant
- Material: Conductive adhesive gel and non-woven fabric
- Connector Type: Snap, clip, or banana plug options
- Size: Various sizes available for different applications (e.g., adult, pediatric)
- Shelf Life: Typically 1-2 years (depending on storage conditions)
- Operating Temperature Range: Suitable for human skin contact
- Electrocardiography (ECG/EKG)
- Electromyography (EMG)
- Electroencephalography (EEG)
- Medical Monitoring and Diagnosis
- Research Studies and Experiments
- Rehabilitation and Physical Therapy
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
