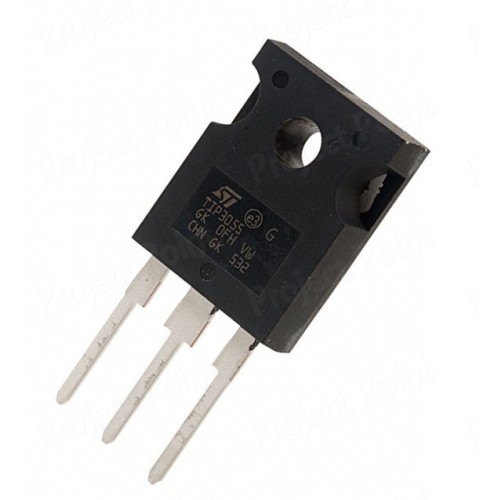

Tip3055 NPN Power Transistor
This content will be shared across all product pages.
The TIP3055 is an NPN power transistor designed for medium-power switching and amplifier applications. It provides reliable performance in circuits requiring moderate to high current and power handling capabilities.
Key Features:
- Transistor Type: NPN (Negative-Positive-Negative) bipolar junction transistor.
- Maximum Collector-Emitter Voltage (V_CE): Typically 60V.
- Collector-Base Voltage (V_CB): Typically 100V.
- Emitter-Base Voltage (V_EB): Typically 7V.
- Collector Current (I_C): Up to 15A continuous.
- Power Dissipation (P_D): Typically around 115W.
- Gain (h_FE): Moderate to high gain, typically 20-70.
- Package Type: TO-218 (TO-3), providing excellent thermal conductivity and mechanical strength.
- Operating Temperature Range: -65°C to +150°C.
- Mounting Style: Through-hole (TO-218 package).
- Pin Configuration: Base (B), Collector (C), Emitter (E).
- Power supply regulators
- Audio amplifiers
- Motor drivers
- General-purpose switching applications
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
