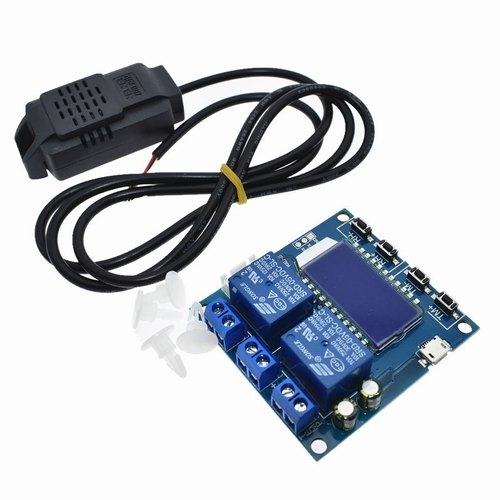

XY-TR01 temperature and humidity control module with display
This content will be shared across all product pages.
The XY-TR01 is a versatile temperature and humidity control module equipped with a digital display. This module is designed for precise monitoring and control of environmental conditions, making it suitable for a wide range of applications, including HVAC systems, incubators, greenhouses, and other environments where maintaining specific temperature and humidity levels is crucial.
Key Features:
- Display: Digital display for real-time temperature and humidity readings.
- Sensor: High-accuracy temperature and humidity sensor.
- Control Outputs: Relay outputs for controlling heating, cooling, humidification, and dehumidification devices.
- Adjustable Settings: User-configurable temperature and humidity setpoints and hysteresis.
- Alarm Function: Audible and visual alarms for out-of-range conditions.
- User Interface: Intuitive interface with buttons for easy configuration and operation.
- Power Supply: 12V DC
- Temperature Range: -40°C to 80°C (-40°F to 176°F)
- Humidity Range: 0% to 100% RH
- Temperature Accuracy: ±0.5°C
- Humidity Accuracy: ±3% RH
- Control Outputs: Relay outputs (typically up to 10A)
- Display Type: Digital LED or LCD display
- Dimensions: Compact design for easy installation
- Operating Environment: Indoor use, suitable for various controlled environments
- HVAC Systems: For maintaining optimal temperature and humidity levels in residential and commercial HVAC systems.
- Incubators: Ensures precise control of temperature and humidity for successful incubation of eggs or other biological processes.
- Greenhouses: Helps maintain ideal growing conditions for plants by regulating temperature and humidity.
- Storage Facilities: Used in environments where specific temperature and humidity conditions are critical for preserving goods.
- DIY Projects: Ideal for hobbyists and makers creating custom environmental control systems.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
