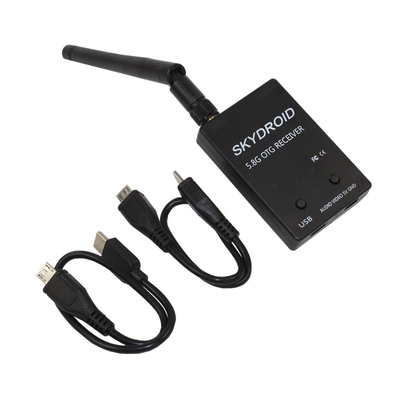

skydroid FPV 5.8G single antenna camera Receiver with OTG and USB
This content will be shared across all product pages.
The Skydroid FPV 5.8G single antenna receiver is designed for receiving video signals from FPV cameras, commonly used in drone racing, aerial photography, and remote control applications. It allows pilots to view real-time video footage transmitted from the drone's onboard camera on FPV goggles or monitors.
Key Features:
- Frequency Band: 5.8GHz, suitable for FPV systems.
- Single Antenna: Provides video reception from the drone's camera with a single antenna.
- Channels: Supports multiple channels for compatibility with various FPV transmitters.
- Compact Design: Lightweight and easy to integrate into FPV setups.
- LED Display: Indicates the current channel and signal strength for easy monitoring.
- Audio Output: Optional audio output for capturing audio signals along with video.
- Frequency Range: 5.8GHz
- Channels: Typically supports 40 channels, covering popular FPV bands.
- Sensitivity: Provides reliable signal reception with high sensitivity.
- Antenna Connector: SMA or RP-SMA connector for antenna connection.
- Power Supply: Usually powered by a DC source compatible with FPV equipment.
- Dimensions: Compact size suitable for mounting on FPV goggles or ground stations.
- Drone Racing: Provides real-time video feed to FPV goggles for competitive racing.
- Aerial Photography: Enables photographers to frame shots and capture video from the drone's perspective.
- Remote Monitoring: Used in surveillance and inspection tasks requiring live video transmission.
- FPV Experience: Enhances the immersive experience for pilots flying drones using FPV goggles.
- Training and Simulation: Used in drone training exercises to simulate real-world flight scenarios.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
