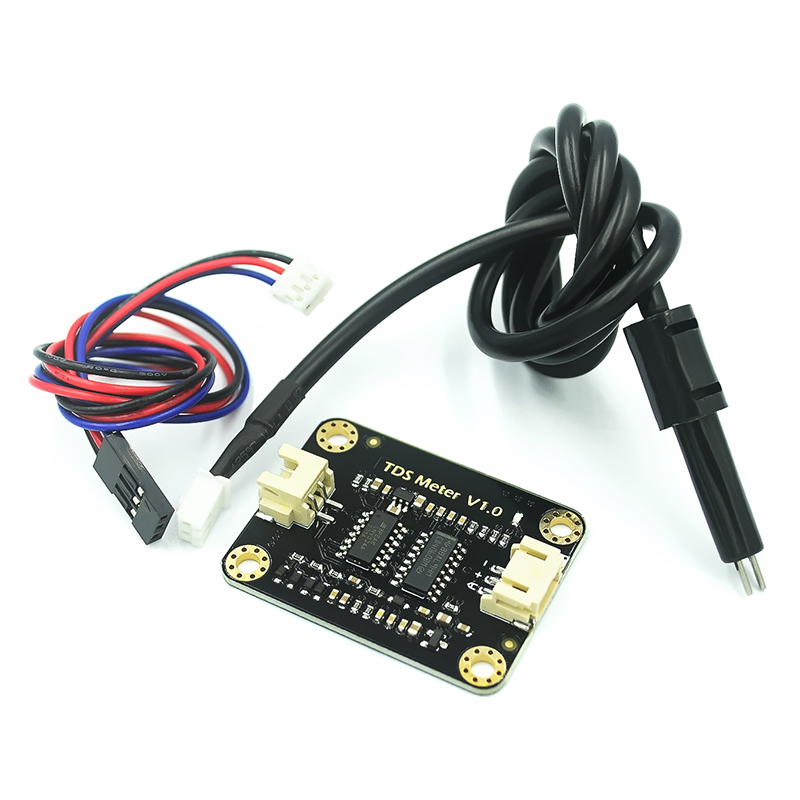

TDS Meter V1.0 Water Quality Meter
This content will be shared across all product pages.
The TDS (Total Dissolved Solids) Meter V1.0 is a device used for measuring the concentration of dissolved solids in water. It provides a quick and reliable way to assess water quality by measuring the conductivity of the water, which correlates to the amount of dissolved ions present.
Key Features:
- Measurement Range: Typically measures TDS from 0 to 9999 ppm (parts per million).
- Accuracy: Provides accurate readings of TDS levels in water.
- Digital Display: LCD display for easy reading of measurements.
- Compact Design: Portable and easy to carry for field measurements.
- User-Friendly: Simple operation with intuitive controls.
- Battery Powered: Uses batteries for convenient operation in various settings.
- Auto-off Function: Automatically shuts off to conserve battery life.
- Measurement Range: 0 to 9999 ppm (parts per million)
- Accuracy: Typically ±2% of reading
- Resolution: 1 ppm (0-999 ppm), 10 ppm (1000-9999 ppm)
- Display: LCD display with backlight (optional)
- Power Source: Typically powered by batteries (e.g., AAA or similar)
- Dimensions: Compact size for portability
- Water Quality Testing: Assessing the purity of drinking water, aquarium water, and other aqueous solutions.
- Aquaculture: Monitoring TDS levels in fish tanks and aquaculture systems.
- Hydroponics: Checking nutrient levels in hydroponic systems.
- Environmental Monitoring: Assessing water quality in environmental studies.
- Industrial Use: Checking water quality in industrial processes and wastewater treatment.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
