3590S-2-103L 10K high precision multi turn potentiometer
This content will be shared across all product pages.

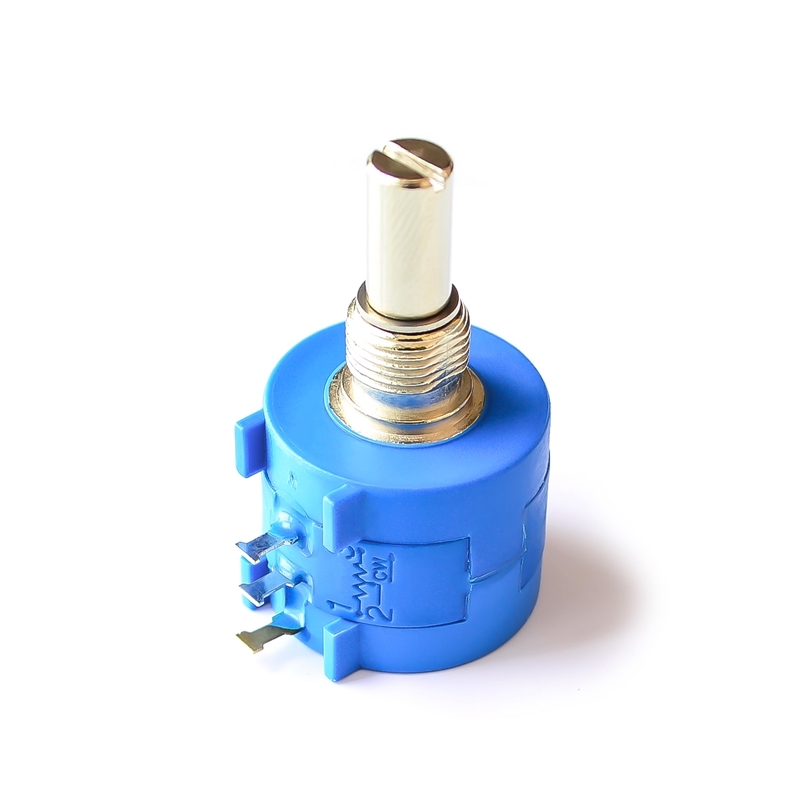

The 3590S-2-103L is a high precision multi-turn potentiometer designed for applications requiring fine adjustment and accurate control of resistance. It offers a resistance of 10K ohms and features a multi-turn mechanism, allowing for precise tuning and stability in various electronic circuits.
Key Features:
- Resistance: 10K ohms
- Type: Multi-turn (typically 10 turns for full scale adjustment)
- High Precision: Designed for accurate and fine adjustments
- Durability: Long operational life with high reliability
- Material: High-quality materials for stability and low noise
- Mounting: Panel mount or PCB mount options available
- Adjustment: Screwdriver slot or knob for easy adjustment
- Resistance: 10K ohms (103)
- Tolerance: ±5% or better
- Power Rating: Typically 2W (varies by model)
- Temperature Coefficient: ±50 ppm/°C or better
- Turns: 10 turns for full scale
- Operating Temperature: -55°C to +125°C
- Shaft Diameter: Typically 6.35mm (0.25 inches)
- Mounting Hole: Typically designed for panel mounting with standard hardware
- Precision Control: Used in circuits requiring precise resistance adjustments, such as calibration and tuning.
- Instrumentation: Ideal for use in measuring instruments and test equipment.
- Audio Equipment: Used for fine adjustments in audio circuits and equipment.
- Industrial Controls: Suitable for industrial applications requiring precise control settings.
- DIY Projects: Popular among hobbyists and makers for custom electronics projects.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
